10.2 Layout Example
This application is typical of a differential data pair application, such as USB 2.0.

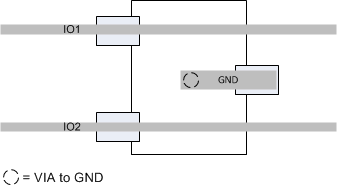

Figure 10-1 Routing with DBZ Package
