SLVSA79A April 2010 – September 2016 TL1963A-Q1
PRODUCTION DATA.
- 1 Features
- 2 Applications
- 3 Description
- 4 Revision History
- 5 Pin Configuration and Functions
- 6 Specifications
- 7 Detailed Description
- 8 Application and Implementation
- 9 Power Supply Recommendations
- 10Layout
- 11Device and Documentation Support
- 12Mechanical, Packaging, and Orderable Information
6 Specifications
6.1 Absolute Maximum Ratings
over operating free-air temperature range (unless otherwise noted)(1)| MIN | MAX | UNIT | ||
|---|---|---|---|---|
| Input voltage, VIN | IN | –20 | 20 | V |
| OUT | –20 | 20 | ||
| Input-to-output differential(2) | –20 | 20 | ||
| SENSE | –20 | 20 | ||
| ADJ | –7 | 7 | ||
| SHDN | –20 | 20 | ||
| Output short-circuit duration, tshort | Indefinite | |||
| Operating junction temperature, TJ | –40 | 125 | °C | |
| Storage temperature, Tstg | –65 | 150 | °C | |
(1) Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings only, which do not imply functional operation of the device at these or any other conditions beyond those indicated under Recommended Operating Conditions. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
(2) Absolute maximum input-to-output differential voltage cannot be achieved with all combinations of rated IN pin and OUT pin voltages. With the IN pin at 20 V, the OUT pin may not be pulled below 0 V. The total measured voltage from IN to OUT cannot exceed ±20 V.
6.2 ESD Ratings
| VALUE | UNIT | |||
|---|---|---|---|---|
| V(ESD) | Electrostatic discharge | Human-body model (HBM), per ANSI/ESDA/JEDEC JS-001(1) | ±2000 | V |
| Charged-device model (CDM), per JEDEC specification JESD22-C101(2) | ±1000 | |||
(1) JEDEC document JEP155 states that 500-V HBM allows safe manufacturing with a standard ESD control process.
(2) JEDEC document JEP157 states that 250-V CDM allows safe manufacturing with a standard ESD control process.
6.3 Recommended Operating Conditions
over operating free-air temperature range (unless otherwise noted)| MIN | MAX | UNIT | ||
|---|---|---|---|---|
| VIN | Input voltage | VOUT + VDO | 20 | V |
| VIH | SHDN high-level input voltage | 2 | 20 | V |
| VIL | SHDN low-level input voltage | 0.25 | V | |
| TJ | Operating junction temperature | –40 | 125 | °C |
6.4 Thermal Information
| THERMAL METRIC(1) | TL1963A-Q1 | UNIT | |
|---|---|---|---|
| KTT (TO-263) | |||
| 5 PINS | |||
| RθJA | Junction-to-ambient thermal resistance | 22.8 | °C/W |
| RθJC(top) | Junction-to-case (top) thermal resistance | 36.5 | °C/W |
| RθJB | Junction-to-board thermal resistance | 6.8 | °C/W |
| ψJT | Junction-to-top characterization parameter | 3.2 | °C/W |
| ψJB | Junction-to-board characterization parameter | 6.8 | °C/W |
| RθJC(bot) | Junction-to-case (bottom) thermal resistance | 1.1 | °C/W |
(1) For more information about traditional and new thermal metrics, see the Semiconductor and IC Package Thermal Metrics application report.
6.5 Electrical Characteristics
Over operating temperature range TJ = –40°C to 125°C (unless otherwise noted)(1)| PARAMETER | TEST CONDITIONS | MIN | TYP(2) | MAX | UNIT | |||
|---|---|---|---|---|---|---|---|---|
| VIN | Minimum input voltage(3)(4) | ILOAD = 0.5 A, TJ = 25°C | 1.9 | V | ||||
| ILOAD = 1.5 A, TJ = –40°C to 125°C | 2.1 | 2.5 | ||||||
| VOUT | Regulated output voltage(5) | TL1963A-Q1-1.5 | VIN = 2.21 V, ILOAD = 1 mA, TJ = 25°C | 1.477 | 1.5 | 1.523 | V | |
| VIN = 2.5 V to 20 V, ILOAD = 1 mA to 1.5 A, TJ = –40°C to 125°C |
1.447 | 1.5 | 1.545 | |||||
| TL1963A-Q1-1.8 | VIN = 2.3 V, ILOAD = 1 mA, TJ = 25°C | 1.773 | 1.8 | 1.827 | ||||
| VIN = 2.8 V to 20 V, ILOAD = 1 mA to 1.5 A, TJ = –40°C to 125°C |
1.737 | 1.8 | 1.854 | |||||
| TL1963A-Q1-2.5 | VIN = 3 V, ILOAD = 1 mA, TJ = 25°C | 2.462 | 2.5 | 2.538 | ||||
| VIN = 3.5 V to 20 V, ILOAD = 1 mA to 1.5 A, TJ = –40°C to 125°C |
2.412 | 2.5 | 2.575 | |||||
| TL1963A-Q1-3.3 | VIN = 3.8 V, ILOAD = 1 mA, TJ = 25°C | 3.25 | 3.3 | 3.35 | ||||
| VIN = 4.3 V to 20 V, ILOAD = 1 mA to 1.5 A, TJ = –40°C to 125°C |
3.2 | 3.3 | 3.4 | |||||
| VADJ | ADJ pin voltage(3)(5) | TL1963A-Q1 | VIN = 2.21 V, ILOAD = 1 mA, TJ = 25°C | 1.192 | 1.21 | 1.228 | V | |
| VIN = 2.5 V to 20 V, ILOAD = 1 mA to 1.5 A, TJ = –40°C to 125°C |
1.174 | 1.21 | 1.246 | |||||
| Line regulation | TL1963A-Q1-1.5, ΔVIN = 2.21 V to 20 V, ILOAD = 1 mA, TJ = –40°C to 125°C |
2 | 6 | mV | ||||
| TL1963A-Q1-1.8, ΔVIN = 2.3 V to 20 V, ILOAD = 1 mA, TJ = –40°C to 125°C |
2.5 | 7 | ||||||
| TL1963A-Q1-2.5, ΔVIN = 3 V to 20 V, ILOAD = 1 mA, TJ = –40°C to 125°C |
3 | 10 | ||||||
| TL1963A-Q1-3.3, ΔVIN = 3.8 V to 20 V, ILOAD = 1 mA, TJ = –40°C to 125°C |
3.5 | 10 | ||||||
| TL1963A-Q1(3), ΔVIN = 2.21 V to 20 V, ILOAD = 1 mA, TJ = –40°C to 125°C |
1.5 | 5 | ||||||
| Load regulation | TL1963A-Q1-1.5, VIN = 2.5 V, ΔILOAD = 1 mA to 1.5 A |
TJ = 25°C | 2 | 9 | mV | |||
| TJ = –40°C to 125°C | 18 | |||||||
| TL1963A-Q1-1.8, VIN = 2.8 V, ΔILOAD = 1 mA to 1.5 A |
TJ = 25°C | 2 | 10 | |||||
| TJ = –40°C to 125°C | 20 | |||||||
| TL1963A-Q1-2.5, VIN = 3.5 V, ΔILOAD = 1 mA to 1.5 A |
TJ = 25°C | 2.5 | 15 | |||||
| TJ = –40°C to 125°C | 30 | |||||||
| TL1963A-Q1-3.3, VIN = 4.3 V, ΔILOAD = 1 mA to 1.5 A |
TJ = 25°C | 3 | 20 | |||||
| TJ = –40°C to 125°C | 70 | |||||||
| TL1963A-Q1(3), VIN = 2.5 V, ΔILOAD = 1 mA to 1.5 A |
TJ = 25°C | 2 | 8 | |||||
| TJ = –40°C to 125°C | 18 | |||||||
| VDROPOUT | Dropout voltage(4)(6)(7)
VIN = VOUT(NOMINAL) |
ILOAD = 1 mA | TJ = 25°C | 0.02 | 0.06 | V | ||
| TJ = –40°C to 125°C | 0.1 | |||||||
| ILOAD = 100 mA | TJ = 25°C | 0.1 | 0.17 | |||||
| TJ = –40°C to 125°C | 0.22 | |||||||
| ILOAD = 500 mA | TJ = 25°C | 0.19 | 0.27 | |||||
| TJ = –40°C to 125°C | 0.35 | |||||||
| ILOAD = 1.5 A | TJ = 25°C | 0.34 | 0.45 | |||||
| TJ = –40°C to 125°C | 0.55 | |||||||
| IGND | GND pin current(7)(8)
VIN = VOUT(NOMINAL) + 1 |
ILOAD = 0 mA, TJ = –40°C to 125°C | 1 | 1.5 | mA | |||
| ILOAD = 1 mA, TJ = –40°C to 125°C | 1.1 | 1.6 | ||||||
| ILOAD = 100 mA, TJ = –40°C to 125°C | 3.8 | 5.5 | ||||||
| ILOAD = 500 mA, TJ = –40°C to 125°C | 15 | 25 | ||||||
| ILOAD = 1.5 A, TJ = –40°C to 125°C | 80 | 120 | ||||||
| eN | Output voltage noise | COUT = 10 µF, ILOAD = 1.5 A, BW = 10 Hz to 100 kHz, TJ = 25°C |
40 | µVRMS | ||||
| IADJ | ADJ pin bias current(3)(9) | TJ = 25°C | 3 | 10 | µA | |||
| Shutdown threshold | VOUT = OFF to ON, TJ = –40°C to 125°C | 0.9 | 2 | V | ||||
| VOUT = ON to OFF, TJ = –40°C to 125°C | 0.25 | 0.75 | ||||||
| ISHDN | SHDN pin current | V SHDN = 0 V, TJ = 25°C | 0.01 | 1 | µA | |||
| V SHDN = 20 V, TJ = 25°C | 3 | 30 | ||||||
| Quiescent current in shutdown | VIN = 6 V, V SHDN = 0 V, TJ = 25°C | 0.01 | 1 | µA | ||||
| Ripple rejection | VIN – VOUT = 1.5 V (avg), VRIPPLE = 0.5 VP-P, fRIPPLE = 120 Hz, ILOAD = 0.75 A, TJ = 25°C |
55 | 63 | dB | ||||
| ILIMIT | Current limit | VIN = 7 V, VOUT = 0 V, TJ = 25°C | 2 | A | ||||
| VIN = VOUT(NOMINAL) + 1, TJ = –40°C to 125°C | 1.6 | |||||||
| IIL | Input reverse leakage current | VIN = –20 V, VOUT = 0 V, TJ = –40°C to 125°C | 1 | mA | ||||
| IRO | Reverse output current(10) | TL1963A-Q1-1.5, VOUT = 1.5 V, VIN < 1.5 V, TJ = 25°C | 600 | 1200 | µA | |||
| TL1963A-Q1-1.8, VOUT = 1.8 V, VIN < 1.8 V, TJ = 25°C | 600 | 1200 | ||||||
| TL1963A-Q1-2.5, VOUT = 2.5 V, VIN < 2.5 V, TJ = 25°C | 600 | 1200 | ||||||
| TL1963A-Q1-3.3, VOUT = 3.3 V, VIN < 3.3 V, TJ = 25°C | 600 | 1200 | ||||||
| TL1963A-Q1, VOUT = 1.21 V, VIN < 1.21 V, TJ = 25°C | 300 | 600 | ||||||
(1) The TL1963A-Q1 regulators are tested and specified under pulse load conditions such that TJ ≈ TA. The TL1963A-Q1 is fully tested at TA = 25°C. Performance at –40°C and 125°C is specified by design, characterization, and correlation with statistical process controls.
(2) Typical values represent the likely parametric nominal values determined at the time of characterization. Typical values depend on the application and configuration and may vary over time. Typical values are not ensured on production material.
(3) The TL1963A-Q1 (adjustable version) is tested and specified for these conditions with the ADJ pin connected to the OUT pin.
(4) For the TL1963A-Q1, TL1963A-Q1-1.5 and TL1963A-Q1-1.8, dropout voltages are limited by the minimum input voltage specification under some output voltage and load conditions.
(5) Operating conditions are limited by maximum junction temperature. The regulated output voltage specification does not apply for all possible combinations of input voltage and output current. When operating at maximum input voltage, the output current range must be limited. When operating at maximum output current, the input voltage range must be limited.
(6) Dropout voltage is the minimum input to output voltage differential required to maintain regulation at a specified output current. In dropout, the output voltage is equal to: VIN – VDROPOUT.
(7) To satisfy requirements for minimum input voltage, the TL1963A-Q1 (adjustable version) is tested and specified for these conditions with an external resistor divider (two 4.12-kΩ resistors) for an output voltage of 2.4 V. The external resistor divider adds a 300-mA DC load on the output.
(8) GND pin current is tested with VIN = (VOUT(NOMINAL) + 1 V) and a current source load. The GND pin current decreases at higher input voltages.
(9) ADJ pin bias current flows into the ADJ pin.
(10) Reverse output current is tested with the IN pin grounded and the OUT pin forced to the rated output voltage. This current flows into the OUT pin and out the GND pin.
6.6 Typical Characteristics
Figure 1. Dropout Voltage vs Output Current

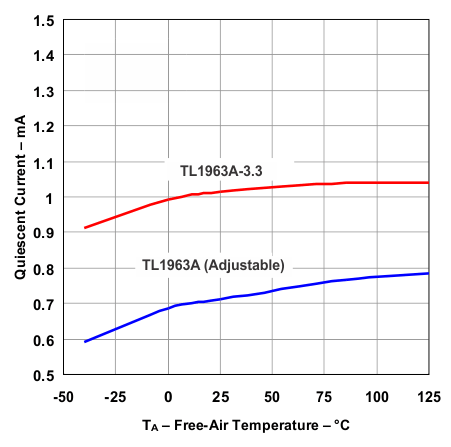

Figure 3. Quiescent Current vs Temperature

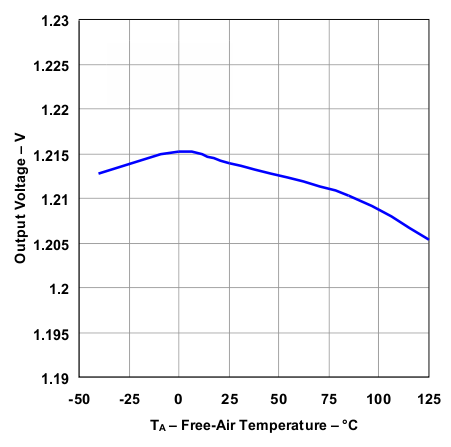

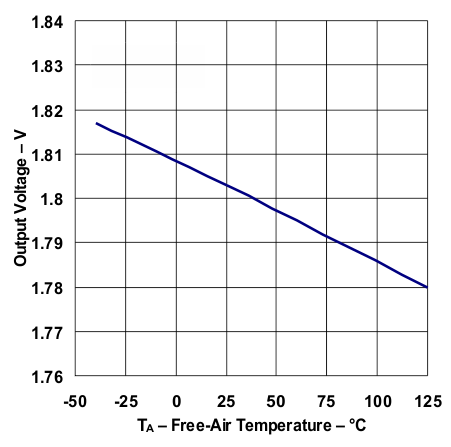

Figure 5. Output Voltage vs Temperature

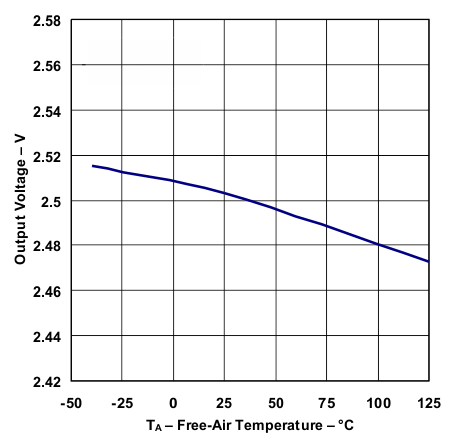

Figure 7. Output Voltage vs Temperature

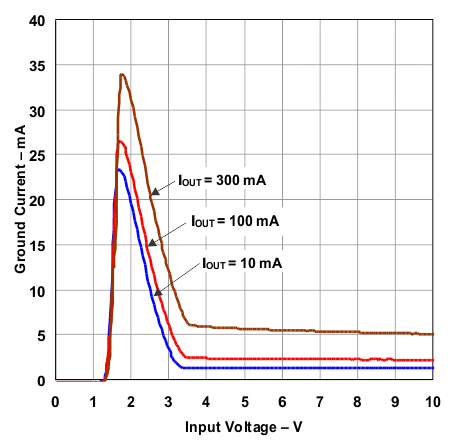

Figure 9. Ground Current vs Input Voltage

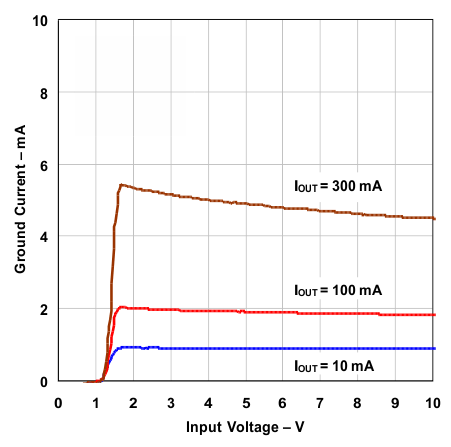

Figure 11. Ground Current vs Input Voltage

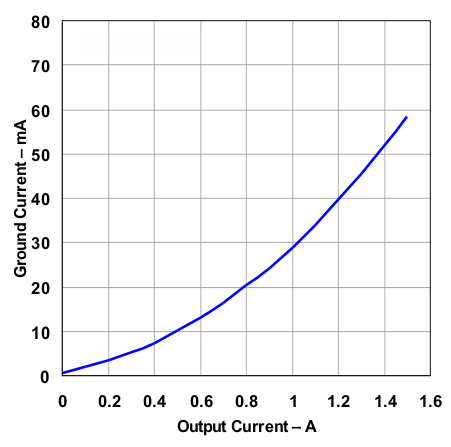

Figure 13. Ground Current vs Output Current

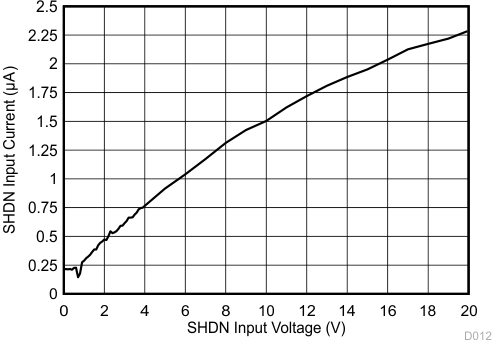

Figure 15. SHDN Input Currentvs SHDN Input Voltage

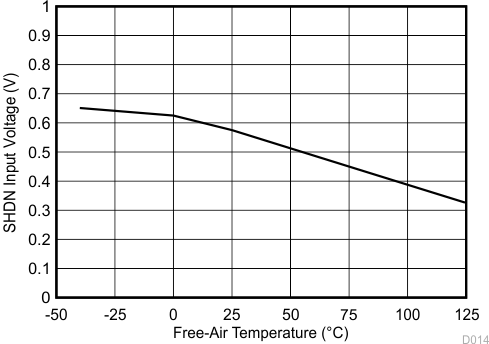

Figure 17. SHDN Threshold (ON to OFF)vs Temperature

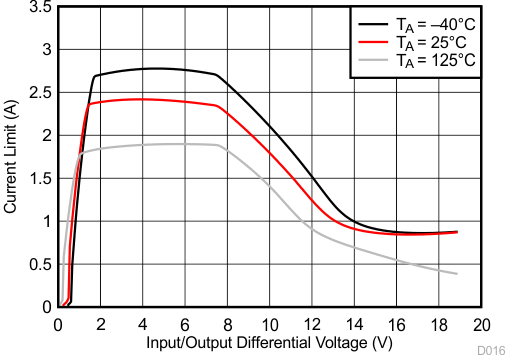

Figure 19. Current Limitvs Input/Output Differential Voltage

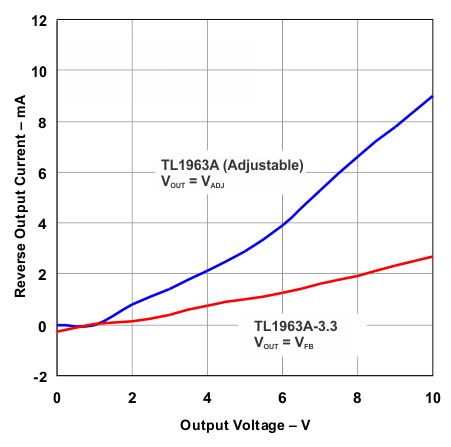

Figure 21. Reverse Output Currentvs Output Voltage

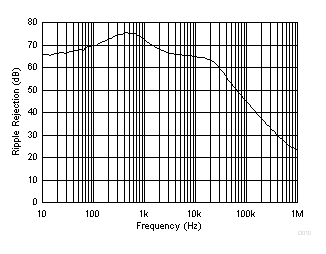

Figure 25. Output Noise Voltage vs Frequency

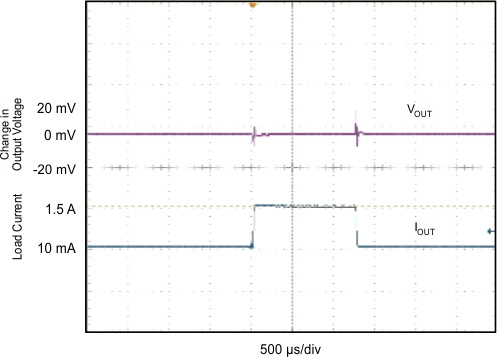

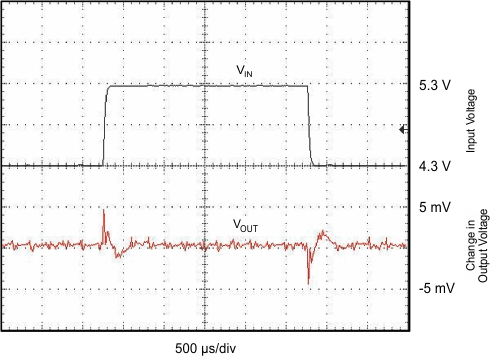

Figure 27. Load Transient Response

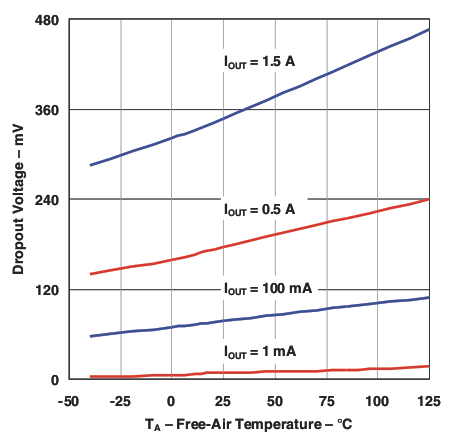

Figure 2. Dropout Voltage vs Temperature
Figure 4. Output Voltage vs Temperature
Figure 6. Output Voltage vs Temperature
Figure 8. Quiescent Current vs Input Voltage
Figure 10. Ground Current vs Input Voltage
Figure 12. Ground Current vs Input Voltage

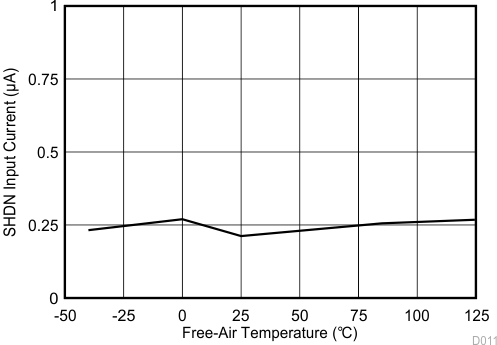

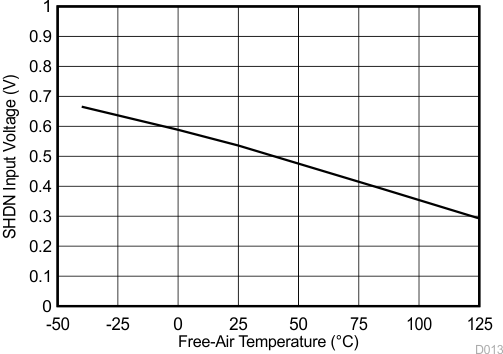

Figure 16. SHDN Threshold (OFF to ON)vs Temperature

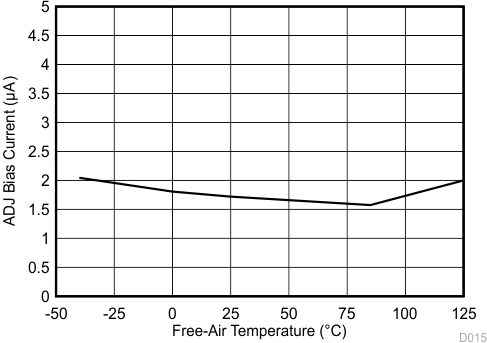

Figure 18. ADJ Bias Current vs Temperature
Figure 20. Current Limit vs Temperature

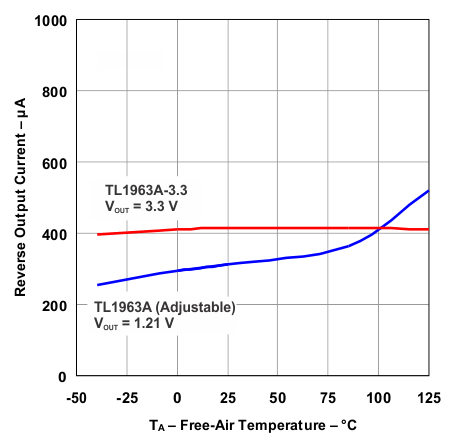

Figure 22. Reverse Output Current vs Temperature

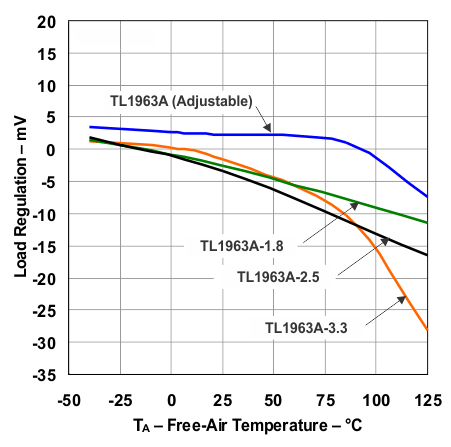

Figure 24. Load Regulation vs Temperature
