8 Parameter Measurement Information

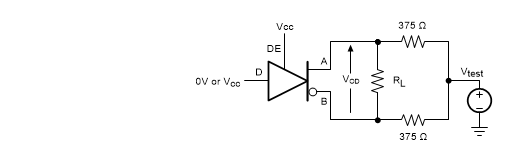

Figure 10. Measurement of Driver Differential Output Voltage With Common-Mode Load

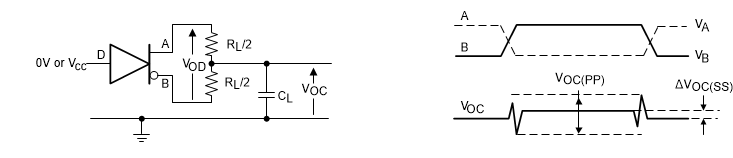

Figure 11. Measurement of Driver Differential and Common-Mode Output With RS-485 Load

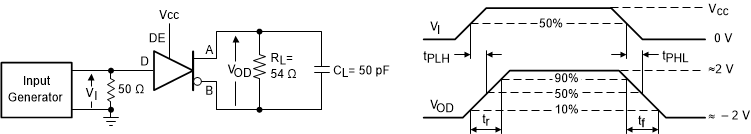

Figure 12. Measurement of Driver Differential Output Rise and Fall Times and Propagation Delays

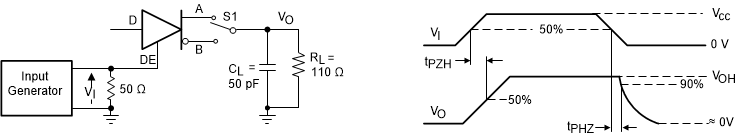

Figure 13. Measurement of Driver Enable and Disable Times With Active High Output and Pull-Down Load

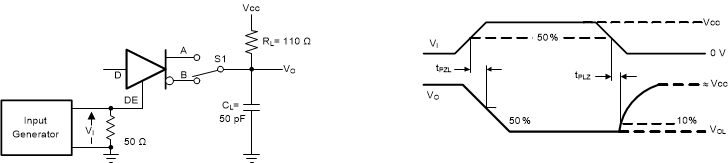

Figure 14. Measurement of Driver Enable and Disable Times With Active Low Output and Pull-up Load

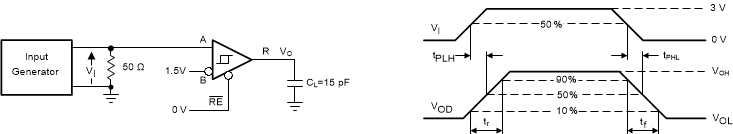

Figure 15. Measurement of Receiver Output Rise and Fall Times and Propagation Delays

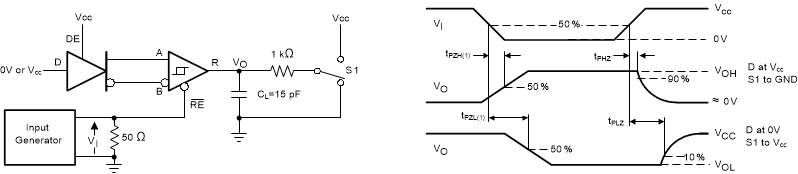

Figure 16. Measurement of Receiver Enable/Disable Times With Driver Enabled

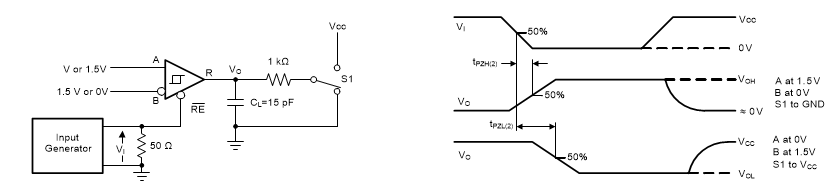

Figure 17. Measurement of Receiver Enable Times With Driver Disabled
