6.16 Typical Performance Characteristics (Mono PBTL Mode)
At TA = 25°C, fSPK_AMP = 384 kHz, input signal is 1 kHz Sine unless otherwise noted.
PVDD = 12 V, POSPK = 1 W

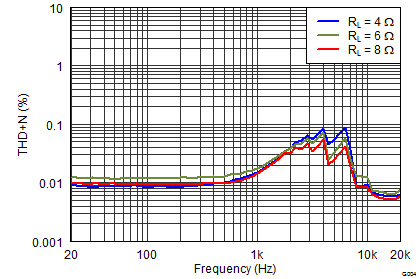

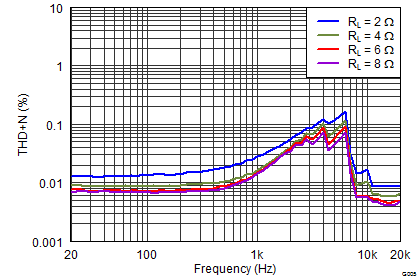

Figure 26. THD+N vs Frequency

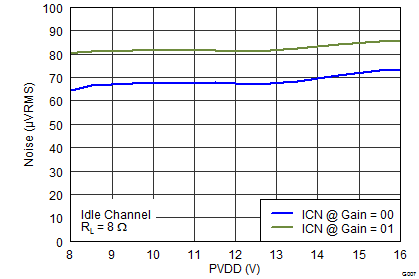

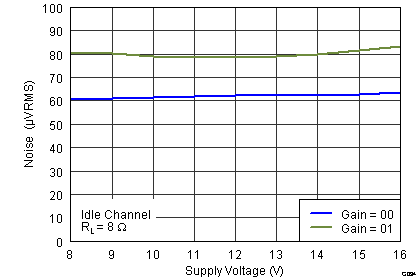

Figure 28. Idle Channel Noise vs PVDD
PVDD = 12 V with 1 kHz Sine Input

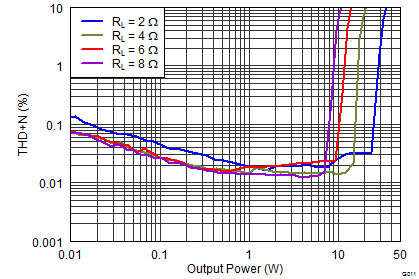

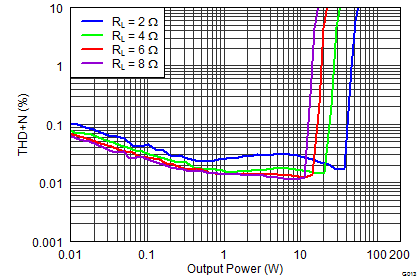

Figure 30. THD+N vs Output Power
PVDD = 12 V, POSPK = 1 W

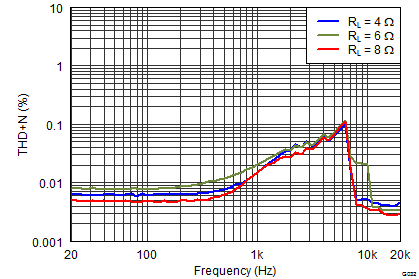

Figure 27. THD+N vs Frequency
PVDD = 12 V with 1 kHz Sine Input
Figure 29. THD+N vs Output Power

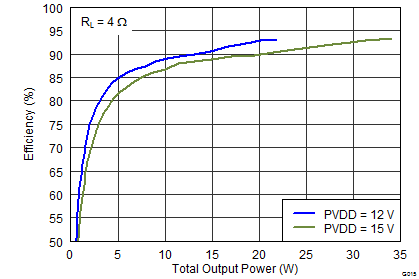

Figure 31. Efficiency vs Output Power
PVDD = 12 V, POSPK = 1 W
Figure 32. THD+N vs Frequency
Figure 34. Idle Channel Noise vs PVDD

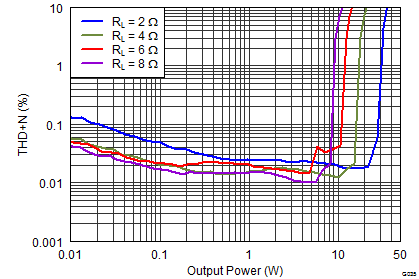

Figure 36. THD+N vs Output Power with PVDD = 12 V
PVDD = 12 V, POSPK = 1 W

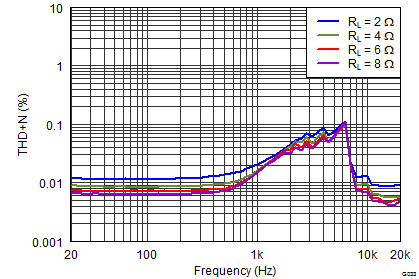

Figure 33. THD+N vs Frequency

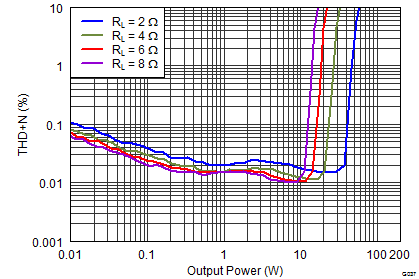

Figure 35. THD+N vs Output Power with PVDD = 12 V

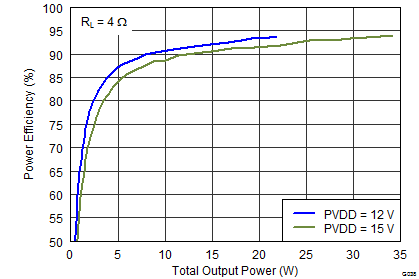

Figure 37. Efficiency vs Output Power
