6.15 Typical Speaker Amplifier Performance Characteristics (Stereo BTL Mode)
At TA = 25°C, fSPK_AMP = 384 kHz, input signal is 1 kHz Sine, unless otherwise noted. Filter used for 8 Ω = 22 µH + 0.68 µF, Filter used for 6 Ω = 15 µH + 0.68 µF, Filter used for 4 Ω = 10 µH + 0.68 µF unless otherwise noted.
Thermal Limits are referenced to TAS5760xxEVM Rev D

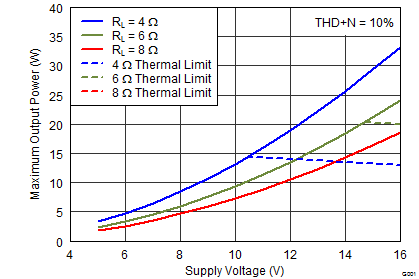

Figure 1. Output Power vs PVDD
PVDD = 12 V, POSPK = 1 W

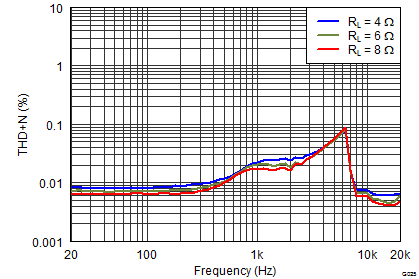

Figure 3. THD+N vs Frequency
PVDD = 12 V, Both Channels Driven

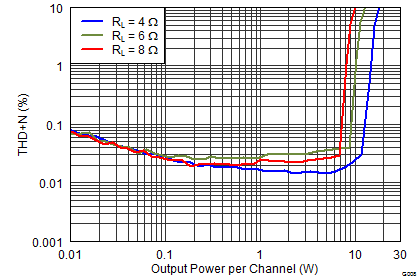

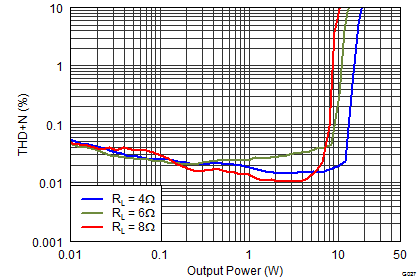

Figure 5. THD+N vs Output Power

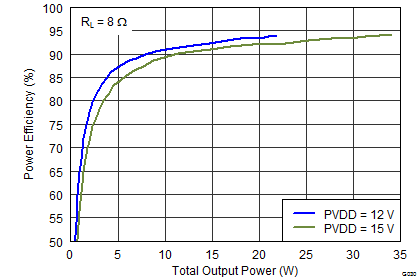

Figure 7. Efficiency vs Output Power

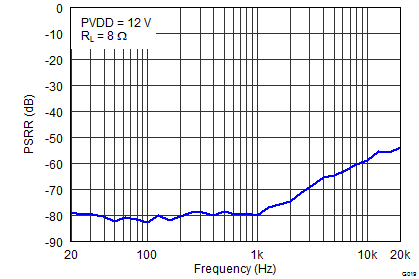

Figure 9. PVDD PSRR vs Frequency
Figure 11. Idle Current Draw vs PVDD (Filterless)
Figure 13. Shutdown Current Draw vs PVDD (Filterless)
PVDD = 12 V, POSPK = 1 W

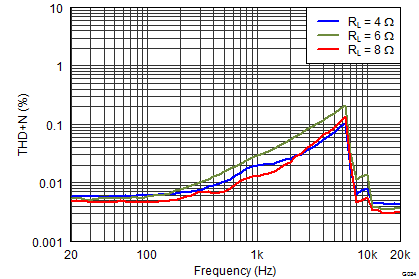

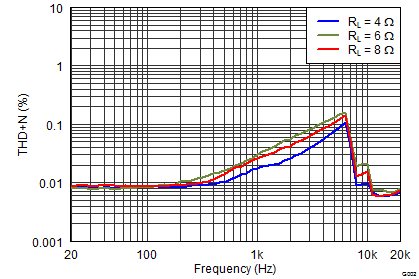

Figure 2. THD+N vs Frequency

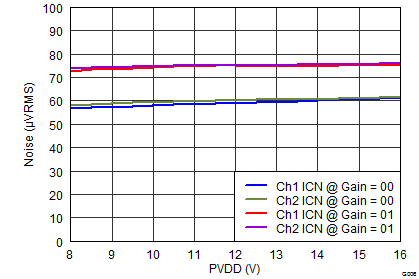

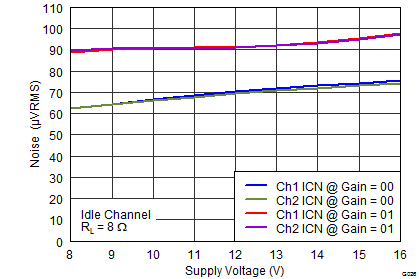

Figure 4. Idle Channel Noise vs PVDD
PVDD = 12 V, Both Channels Driven

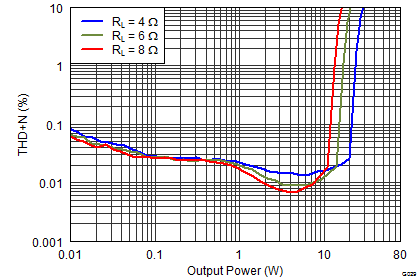

Figure 6. THD+N vs Output Power

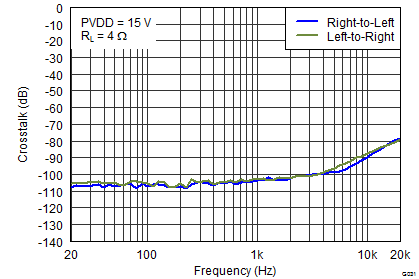

Figure 8. Crosstalk vs Frequency

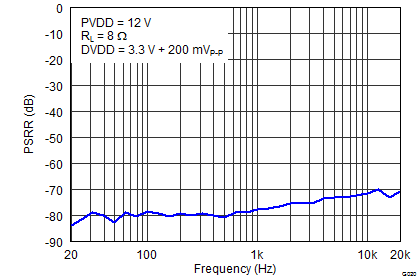

Figure 10. DVDD PSRR vs Frequency
With LC Filter as shown on the EVM
Figure 12. Idle Current Draw vs PVDD
Filter used for 8 Ω = 22 µH + 0.68 µF, Filter used for 6 Ω = 15 µH + 0.68 µF, Filter used for 4 Ω = 10 µH + 0.68 µF unless otherwise noted.
Thermal Limits are referenced to TAS5760xxEVM Rev D

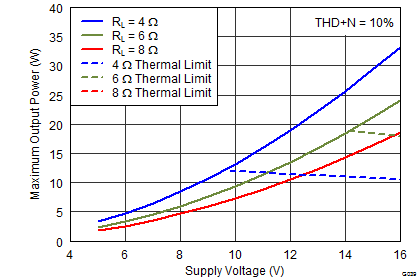

Figure 14. Output Power vs PVDD
PVDD = 12 V, POSPK = 1 W

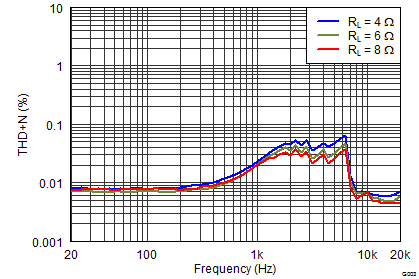

Figure 16. THD+N vs Frequency
PVDD = 12 V, Both Channels Driven

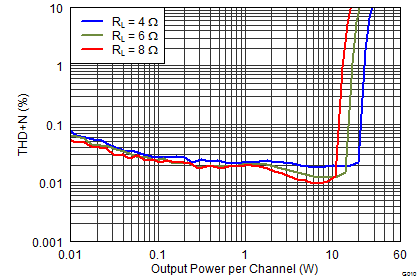

Figure 18. THD+N vs Output Power

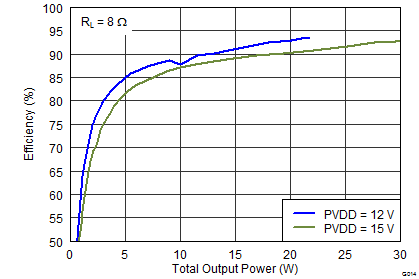

Figure 20. Efficiency vs Output Power
Figure 22. PVDD PSRR vs Frequency
Figure 24. Idle Current Draw vs PVDD (with LC Filter as shown on EVM)
PVDD = 12 V, POSPK = 1 W
Figure 15. THD+N vs Frequency
Figure 17. Idle Channel Noise vs PVDD
PVDD = 12 V, Both Channels Driven
Figure 19. THD+N vs Output Power

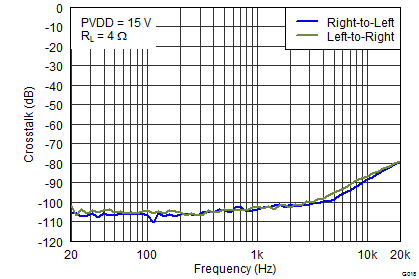

Figure 21. Crosstalk vs Frequency
Figure 23. Idle Current Draw vs PVDD (Filterless)
Figure 25. Shutdown Current Draw vs PVDD (Filterless)
