7 Specifications
7.1 Absolute Maximum Ratings
over operating free-air temperature range (unless otherwise noted)(1)| MIN | MAX | UNIT | |||
|---|---|---|---|---|---|
| VCC | Supply voltage range | –0.5 | 7 | V | |
| VI | Input voltage range(2) | –0.5 | 7 | V | |
| VO | Voltage range applied to any output in the high-impedance or power-off state(2) | –0.5 | 7 | V | |
| VO | Output voltage range(2)(3) | –0.5 | VCC + 0.5 | V | |
| IIK | Input clamp current | VI < 0 | –20 | mA | |
| IOK | Output clamp current | VO < 0 | –50 | mA | |
| IO | Continuous output current | VO = 0 to VCC | ±25 | mA | |
| Continuous current through VCC or GND | ±50 | mA | |||
| Tstg | Storage temperature range | –65 | 150 | °C | |
(1) Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under Recommended Operating Conditions is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
(2) The input and output negative-voltage ratings may be exceeded if the input and output current ratings are observed.
(3) This value is limited to 5.5-V maximum.
7.2 ESD Ratings
| VALUE | UNIT | |||
|---|---|---|---|---|
| V(ESD) | Electrostatic discharge | Human body model (HBM), per ANSI/ESDA/JEDEC JS-001, all pins(1) | +2000 | V |
| Charged device model (CDM), per JEDEC specification JESD22-C101, all pins(2) | +1000 | |||
(1) JEDEC document JEP155 states that 500-V HBM allows safe manufacturing with a standard ESD control process.
(2) JEDEC document JEP157 states that 250-V CDM allows safe manufacturing with a standard ESD control process.
7.3 Recommended Operating Conditions
over operating free-air temperature range (unless otherwise noted)(1)| SN54LV00A(2) | SN74LV00A | UNIT | |||||
|---|---|---|---|---|---|---|---|
| MIN | MAX | MIN | MAX | ||||
| VCC | Supply voltage | 2 | 5.5 | 2 | 5.5 | V | |
| VIH | High-level input voltage | VCC = 2 V | 1.5 | 1.5 | V | ||
| VCC = 2.3 V to 2.7 V | VCC × 0.7 | VCC × 0.7 | |||||
| VCC = 3 V to 3.6 V | VCC × 0.7 | VCC × 0.7 | |||||
| VCC = 4.5 V to 5.5 V | VCC × 0.7 | VCC × 0.7 | |||||
| VIL | Low-level input voltage | VCC = 2 V | 0.5 | 0.5 | V | ||
| VCC = 2.3 V to 2.7 V | VCC × 0.3 | VCC × 0.3 | |||||
| VCC = 3 V to 3.6 V | VCC × 0.3 | VCC × 0.3 | |||||
| VCC = 4.5 V to 5.5 V | VCC × 0.3 | VCC × 0.3 | |||||
| VI | Input voltage | 0 | 5.5 | 0 | 5.5 | V | |
| VO | Output voltage | 0 | VCC | 0 | VCC | V | |
| IOH | High-level output current | VCC = 2 V | –50 | –50 | µA | ||
| VCC = 2.3 V to 2.7 V | –2 | –2 | mA | ||||
| VCC = 3 V to 3.6 V | –6 | –6 | |||||
| VCC = 4.5 V to 5.5 V | –12 | –12 | |||||
| IOL | Low-level output current | VCC = 2 V | 50 | 50 | µA | ||
| VCC = 2.3 V to 2.7 V | 2 | 2 | mA | ||||
| VCC = 3 V to 3.6 V | 6 | 6 | |||||
| VCC = 4.5 V to 5.5 V | 12 | 12 | |||||
| Δt/Δv | Input transition rise or fall rate | VCC = 2.3 V to 2.7 V | 200 | 200 | ns/V | ||
| VCC = 3 V to 3.6 V | 100 | 100 | |||||
| VCC = 4.5 V to 5.5 V | 20 | 20 | |||||
| TA | Operating free-air temperature | –40 | 125 | –40 | 125 | °C | |
(1) All unused inputs of the device must be held at VCC or GND to ensure proper device operation. Refer to the TI application report, Implications of Slow or Floating CMOS Inputs (SCBA004).
(2) Product Preview.
7.4 Thermal Information
| THERMAL METRIC(1) | SNx4LV00A | UNIT | ||||||
|---|---|---|---|---|---|---|---|---|
| D | DB | DGV | NS | PW | RGY | |||
| 14 PINS | 14 PINS | 14 PINS | 14 PINS | 14 PINS | 14 PINS | |||
| RθJA | Junction-to-ambient thermal resistance | 90.6 | 107.1 | 129.0 | 90.7 | 122.6 | 57.5 | °C/W |
| RθJC(top) | Junction-to-case (top) thermal resistance | 50.9 | 59.6 | 521 | 48.3 | 51.4 | 70.8 | |
| RθJB | Junction-to-board thermal resistance | 44.8 | 54.4 | 62.0 | 49.4 | 64.4 | 33.6 | |
| ψJT | Junction-to-top characterization parameter | 14.7 | 20.5 | 6.5 | 14.6 | 6.7 | 34 | |
| ψJB | Junction-to-board characterization parameter | 44.5 | 53.8 | 61.3 | 49.1 | 63.8 | 33.7 | |
| RθJC(bot) | Junction-to-case (bottom) thermal resistance | — | — | — | — | — | 13.9 | |
(1) For more information about traditional and new thermal metrics, see the IC Package Thermal Metrics application report (SPRA953).
7.5 Electrical Characteristics
over recommended operating free-air temperature range (unless otherwise noted)| PARAMETER | TEST CONDITIONS | VCC | SN54LV00A(1) | –40°C to 85°C SN74LV00A |
–40°C to 125°C SN74LV00A |
UNIT | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| MIN | TYP | MAX | MIN | MAX | MIN | MAX | |||||
| VOH | IOH = –50 µA | 2 V to 5.5 V |
VCC – 0.1 | VCC – 0.1 | VCC – 0.1 | V | |||||
| IOH = –2 mA | 2.3 V | 2 | 2 | 2 | |||||||
| IOH = –6 mA | 3 V | 2.48 | 2.48 | 2.48 | |||||||
| IOH = –12 mA | 4.5 V | 3.8 | 3.8 | 3.8 | |||||||
| VOL | IOL = 50 µA | 2 V to 5.5 V |
0.1 | 0.1 | 0.1 | V | |||||
| IOL = 2 mA | 2.3 V | 0.4 | 0.4 | 0.4 | |||||||
| IOL = 6 mA | 3 V | 0.44 | 0.44 | 0.44 | |||||||
| IOL = 12 mA | 4.5 V | 0.55 | 0.55 | 0.55 | |||||||
| II | VI = 5.5 V or GND | 0 to 5.5 V |
±1 | ±1 | ±1 | µA | |||||
| ICC | VI = VCC or GND, | IO = 0 | 5.5 V | 20 | 20 | 20 | µA | ||||
| Ioff | VI or VO = 0 to 5.5 V | 0 | 5 | 5 | 5 | µA | |||||
| Ci | VI = VCC or GND | 3.3 V | 3.3 | 3.3 | pF | ||||||
| 5 V | 3.3 | 3.3 | |||||||||
(1) Product Preview.
7.6 Switching Characteristics, VCC = 2.5 V ± 0.2 V
over recommended operating free-air temperature range (unless otherwise noted) (see Figure 3)| PARAMETER | FROM (INPUT) |
TO (OUTPUT) |
LOAD CAPACITANCE |
TA = 25°C | SN54LV00A(2) | –40°C to 85°C SN74LV00A |
–40°C to 125°C SN74LV00A |
UNIT | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MIN | TYP | MAX | MIN | MAX | MIN | MAX | |||||||
| tpd | A | Y | CL = 15 pF | 7.1(1) | 12.9(1) | 1(1) | 16(1) | 1 | 15 | 1 | 16 | ns | |
| CL = 50 pF | 9.6 | 16.6 | 1 | 21 | 1 | 20 | 1 | 21 | |||||
(1) On products compliant to MIL-PRF-38535, this parameter is not production tested.
(2) Product Preview.
7.7 Switching Characteristics, VCC = 3.3 V ± 0.3 V
over recommended operating free-air temperature range (unless otherwise noted) (see Figure 3)| PARAMETER | FROM (INPUT) |
TO (OUTPUT) |
LOAD CAPACITANCE |
TA = 25°C | SN54LV00A(2) | –40°C to 85°C SN74LV00A |
–40°C to 125°C SN74LV00A |
UNIT | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MIN | TYP | MAX | MIN | MAX | MIN | MAX | MIN | MAX | |||||
| tpd | A | Y | CL = 15 pF | 5(1) | 7.9(1) | 1(1) | 10.5(1) | 1 | 9.5 | 1 | 10.5 | ns | |
| CL = 50 pF | 6.9 | 11.4 | 1 | 14 | 1 | 13 | 1 | 14 | |||||
(1) On products compliant to MIL-PRF-38535, this parameter is not production tested.
(2) Product Preview.
7.8 Switching Characteristics, VCC = 5 V ± 0.5 V
over recommended operating free-air temperature range (unless otherwise noted) (see Figure 3)| PARAMETER | FROM (INPUT) |
TO (OUTPUT) |
LOAD CAPACITANCE |
TA = 25°C | SN54LV00A(2) | –40°C to 85°C SN74LV00A |
–40°C to 125°C SN74LV00A |
UNIT | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MIN | TYP | MAX | MIN | MAX | MIN | MAX | MIN | MAX | |||||
| tpd | A | Y | CL = 15 pF | 3.6(1) | 5.5(1) | 1(1) | 7.5(1) | 1 | 6.5 | 1 | 7 | ns | |
| CL = 50 pF | 4.9 | 7.5 | 1 | 9.5 | 1 | 8.5 | 1 | 9 | |||||
(1) On products compliant to MIL-PRF-38535, this parameter is not production tested.
(2) Product Preview.
7.9 Noise Characteristics(1)
VCC = 3.3 V, CL = 50 pF, TA = 25°C| PARAMETER | SN74LV04A | UNIT | |||
|---|---|---|---|---|---|
| MIN | TYP | MAX | |||
| VOL(P) | Quiet output, maximum dynamic VOL | 0.2 | 0.8 | V | |
| VOL(V) | Quiet output, minimum dynamic VOL | –0.1 | –0.8 | V | |
| VOH(V) | Quiet output, minimum dynamic VOH | 3.1 | V | ||
| VIH(D) | High-level dynamic input voltage | 2.31 | V | ||
| VIL(D) | Low-level dynamic input voltage | 0.99 | V | ||
(1) Characteristics are for surface-mount packages only.
7.10 Operating Characteristics
TA = 25°C| PARAMETER | TEST CONDITIONS | VCC | TYP | UNIT | ||
|---|---|---|---|---|---|---|
| Cpd | Power dissipation capacitance | CL = 50 pF, | f = 10 MHz | 3.3 V | 9.5 | pF |
| 5 V | 11 | |||||
7.11 Typical Characteristics

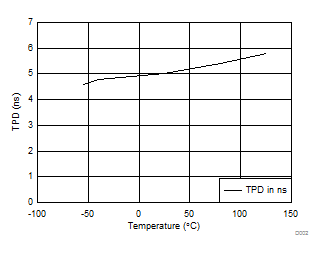

Figure 1. TPD vs Temperature at 5 V

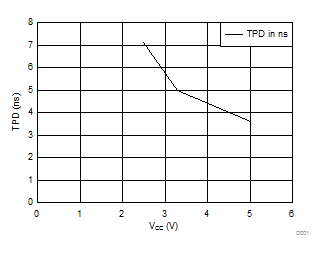

Figure 2. TPD vs VCC at 25°C
