7 Parameter Measurement Information
Test load capacitance includes probe and jig capacitance (unless otherwise specified). Signal generator characteristics: rise and fall time < 6 ns, pulse rate 100 kHz, 50% duty cycle. ZO = 50 Ω (unless otherwise specified).
Figure 7-1 Driver
Test Circuit, VOD and VOC Without Common-Mode
Loading

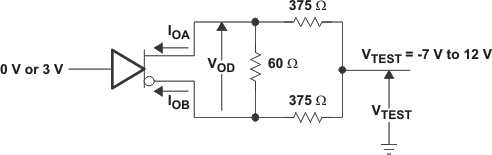

Figure 7-2 Driver
Test Circuit, VOD With Common-Mode Loading

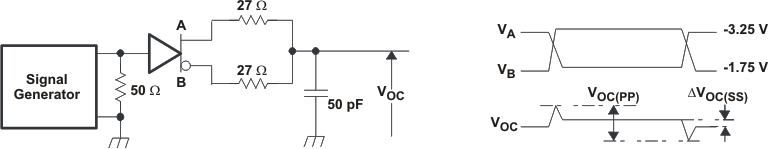

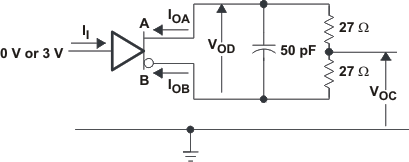

Figure 7-3 Driver
VOC Test Circuit and Waveforms
Figure 7-4 Driver
Switching Test Circuit and Waveforms

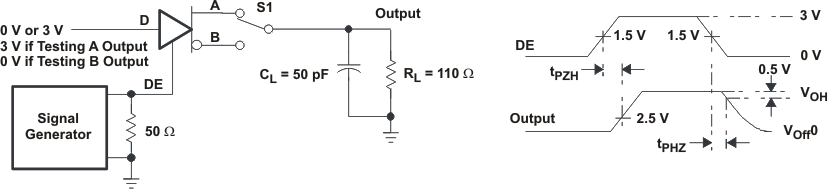

Figure 7-5 Driver
Enable and Disable Test Circuit and Waveforms, High Output

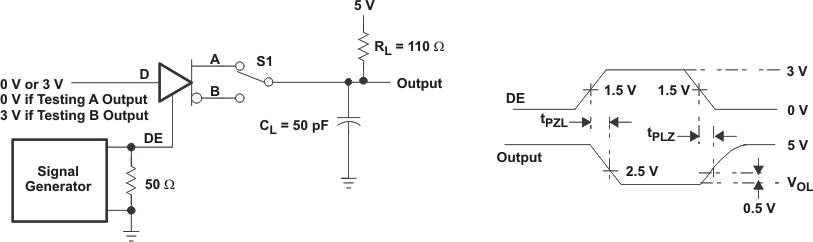

Figure 7-6 Driver
Enable and Disable Test Circuit and Waveforms, Low Output
Figure 7-7 Driver
Short-Circuit |
Figure 7-8 Receiver
Switching Test Circuit and Waveforms |

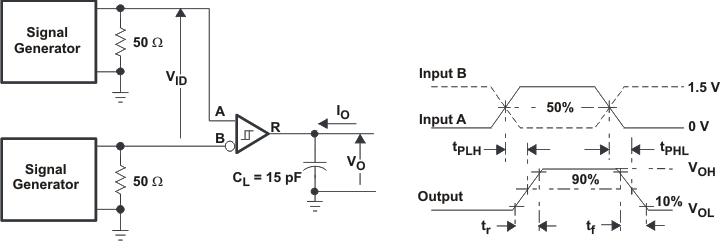

Figure 7-9 Receiver
Switching Test Circuit and Waveforms
Figure 7-10 Receiver
Enable and Disable Test Circuit and Waveforms, Data Output High

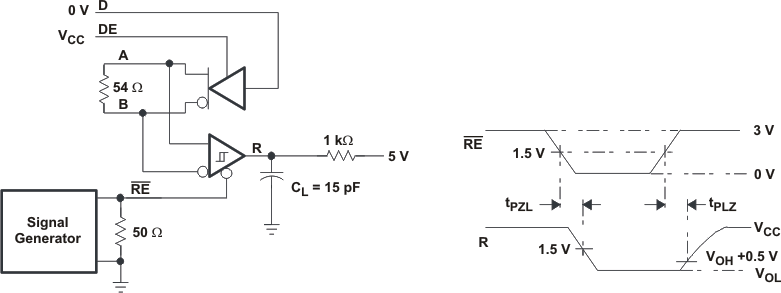

Figure 7-11 Receiver
Enable and Disable Test Circuit and Waveforms, Data Output Low

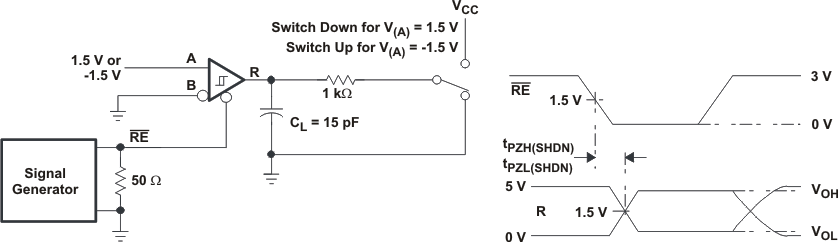

Figure 7-12 Receiver
Enable From Shutdown Test Circuit and Waveforms
Figure 7-13 Test
Circuit and Waveforms, Transient Overvoltage Test

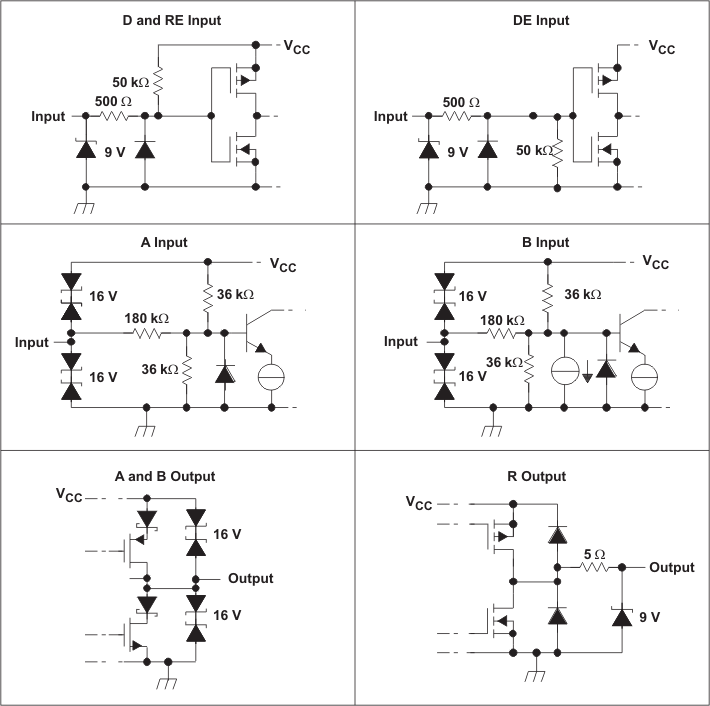

Figure 7-14 Equivalent Input and Output Schematic Diagrams
