SDLS025D December 1983 – May 2017 SN5400 , SN54LS00 , SN54S00 , SN7400 , SN74LS00 , SN74S00

PRODUCTION DATA.

封裝選項

請參考 PDF 數據表獲取器件具體的封裝圖。

機械數據 (封裝 | 引腳)

J|14
W|14

散熱焊盤機械數據 (封裝 | 引腳)

訂購信息

6 Specifications

6.1 Absolute Maximum Ratings

over operating free-air temperature range (unless otherwise noted)⁽¹⁾

		MIN	MAX	UNIT
Supply voltage, V_CC⁽²⁾			7	V
Input voltage	SNx400 and SNxS400		5.5	V
Input voltage	SNx4LS00		7	V
Junction temperature, T_J			150	°C
Storage temperature, T_stg		–65	150	°C

(1) Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings only, which do not imply functional operation of the device at these or any other conditions beyond those indicated under Recommended Operating Conditions. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.

(2) Voltage values are with respect to network ground terminal.

6.2 ESD Ratings: SN74LS00

			VALUE	UNIT
V_(ESD)	Electrostatic discharge	Human-body model (HBM), per ANSI/ESDA/JEDEC JS-001⁽¹⁾	±500	V
V_(ESD)	Electrostatic discharge	Charged-device model (CDM), per JEDEC specification JESD22-C101⁽²⁾	±2000	V

(1) JEDEC document JEP155 states that 500-V HBM allows safe manufacturing with a standard ESD control process. Manufacturing with less than 500-V HBM is possible with the necessary precautions.

(2) JEDEC document JEP157 states that 250-V CDM allows safe manufacturing with a standard ESD control process. Manufacturing with less than 250-V CDM is possible with the necessary precautions. Pins listed as ±2000 V may actually have higher performance. ESD Tested on SN74LS00N package.

6.3 Recommended Operating Conditions

over operating free-air temperature range (unless otherwise noted)

			MIN	NOM	MAX	UNIT
V_CC	Supply voltage	SN54xx00	4.5	5	5.5	V
V_CC	Supply voltage	SN74xx00	4.75	5	5.25	V
V_IH	High-level input voltage		2			V
V_IL	Low-level input voltage	SNx400, SN7LS400, and SNx4S00			0.8	V
V_IL	Low-level input voltage	SN54LS00			0.7	V
I_OH	High-level output current	SN5400, SN54LS00, and SN74LS00			–0.4	mA
I_OH	High-level output current	SNx4S00			–1	mA
I_OL	Low-level output current	SNx400			16	mA
		SN5LS400			4
		SN7LS400			8
		SNx4S00			20
T_A	Operating free-air temperature	SN54xx00	–55		125	°C
T_A	Operating free-air temperature	SN74xx00	0		70	°C

6.4 Thermal Information

THERMAL METRIC⁽¹⁾⁽²⁾		SN74LS00				UNIT
		D (SOIC)	DB (SSOP)	N (PDIP)	NS (SO)
		14 PINS	14 PINS	14 PINS	14 PINS
R_θJA	Junction-to-ambient thermal resistance	90.9	102.8	54.8	89.7	°C/W
R_θJC(top)	Junction-to-case (top) thermal resistance	51.9	53.3	42.1	48.1	°C/W
R_θJB	Junction-to-board thermal resistance	48	53.4	34.8	50.1	°C/W
ψ_JT	Junction-to-top characterization parameter	18.6	16.5	26.9	16.7	°C/W
ψ_JB	Junction-to-board characterization parameter	47.8	52.9	34.7	49.8	°C/W

(1) For more information about traditional and new thermal metrics, see the Semiconductor and IC Package Thermal Metrics application report.

(2) The package thermal impedance is calculated in accordance with JESD 51-7.

6.5 Electrical Characteristics: SNx400

over operating free-air temperature range (unless otherwise noted)

PARAMETER	TEST CONDITIONS		MIN	TYP	MAX	UNIT
V_IK	V_CC = MIN and I_I = –12 mA				–1.5	V
V_OH	V_CC = MIN, V_IL = 0.8 V, and I_OH = –0.4 mA		2.4	3.4		V
V_OL	V_CC = MIN, V_IH = 2 V, and I_OL = 16 mA			0.2	0.4	V
I_I	V_CC = MAX and V_I = 5.5 V				1	mA
I_IH	V_CC = MAX and V_I = 2.4 V				40	µA
I_IL	V_CC = MAX and V_I = 0.4 V				–1.6	mA
I_OS	V_CC = MAX	SN5400	–20		–55	mA
I_OS	V_CC = MAX	SN7400	–18		–55	mA
I_CCH	V_CC = MAX and V_I = 0 V			4	8	mA
I_CCL	V_CC = MAX and V_I = 4.5 V			12	22	mA

6.6 Electrical Characteristics: SNx4LS00

over operating free-air temperature range (unless otherwise noted)

PARAMETER	TEST CONDITIONS		MIN	TYP	MAX	UNIT
V_IK	V_CC = MIN and I_I = –18 mA				–1.5	V
V_OH	V_CC = MIN, V_IL = MAX, and I_OH = –0.4 mA		2.5	3.4		V
V_OL	V_CC = MIN and V_IH = 2 V	I_OL = 4 mA		0.25	0.4	V
V_OL	V_CC = MIN and V_IH = 2 V	I_OL = 8 mA (SN74LS00)		0.35	0.5	V
I_I	V_CC = MAX and V_I = 7 V				0.1	mA
I_IH	V_CC = MAX and V_I = 2.7 V				20	µA
I_IL	V_CC = MAX and V_I = 0.4 V				–0.4	mA
I_OS	V_CC = MAX		–20		–100	mA
I_CCH	V_CC = MAX and V_I = 0 V			0.8	1.6	mA
I_CCL	V_CC = MAX and V_I = 4.5 V			2.4	4.4	mA

6.7 Electrical Characteristics: SNx4S00

over operating free-air temperature range (unless otherwise noted)

PARAMETER	TEST CONDITIONS	MIN	TYP	MAX	UNIT
V_IK	V_CC = MIN and I_I = –18 mA			–1.2	V
V_OH	V_CC = MIN, V_IL = 0.8 V, and I_OH = –1 mA	2.5	3.4		V
V_OL	V_CC = MIN, V_IH = 2 V, and I_OL = 20 mA			0.5	V
I_I	V_CC = MAX and V_I = 5.5 V			1	mA
I_IH	V_CC = MAX and V_I = 2.7 V			50	µA
I_IL	V_CC = MAX and V_I = 0.5 V			–2	mA
I_OS	V_CC = MAX	–40		–100	mA
I_CCH	V_CC = MAX and V_I = 0 V		10	16	mA
I_CCL	V_CC = MAX and V_I = 4.5 V		20	36	mA

6.8 Switching Characteristics: SNx400

V_CC = 5 V, T_A = 25°C, and over operating free-air temperature range (unless otherwise noted). See Figure 2.

PARAMETER		FROM (INPUT)	TO (OUTPUT)	TEST CONDITIONS	MIN	TYP	MAX	UNIT
t_PLH		A or B	Y	R_L = 400 Ω and C_L = 15 pF		11	22	ns
t_PHL		A or B	Y	R_L = 400 Ω and C_L = 15 pF		7	15	ns

6.9 Switching Characteristics: SNx4LS00

V_CC = 5 V, T_A = 25°C, and over operating free-air temperature range (unless otherwise noted). See Figure 2.

PARAMETER		FROM (INPUT)	TO (OUTPUT)	TEST CONDITIONS	MIN	TYP	MAX	UNIT
t_PLH		A or B	Y	R_L = 2 kΩ and C_L = 15 pF		9	15	ns
t_PHL		A or B	Y	R_L = 2 kΩ and C_L = 15 pF		10	15	ns

6.10 Switching Characteristics: SNx4S00

V_CC = 5 V, T_A = 25°C, and over operating free-air temperature range (unless otherwise noted). See Figure 2.

PARAMETER	FROM (INPUT)	TO (OUTPUT)	TEST CONDITIONS	TYP	MAX	UNIT
t_PLH	A or B	Y	R_L = 280 Ω and C_L = 15 pF	3	4.5	ns
t_PLH	A or B	Y	R_L = 280 Ω and C_L = 50 pF	4.5
t_PHL	A or B	Y	R_L = 280 Ω and C_L = 15 pF	3	5
t_PHL	A or B	Y	R_L = 280 Ω and C_L = 50 pF	5

6.11 Typical Characteristics

C_L = 15 pF

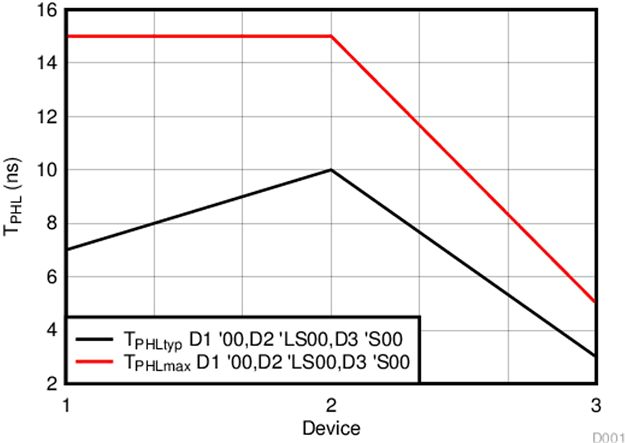

SN5400 SN54LS00 SN54S00 SN7400 SN74LS00 SN74S00 D002_sdls025.gif

Figure 1. T_PHL (Across Devices)
