SCLS225G JULY 1995 – November 2016 SN54HCT14 , SN74HCT14
PRODUCTION DATA.
- 1 Features
- 2 Applications
- 3 Description
- 4 Revision History
- 5 Pin Configuration and Functions
- 6 Specifications
- 7 Parameter Measurement Information
- 8 Detailed Description
- 9 Application and Implementation
- 10Power Supply Recommendations
- 11Layout
- 12Device and Documentation Support
- 13Mechanical, Packaging, and Orderable Information
封裝選項
請參考 PDF 數據表獲取器件具體的封裝圖。
機械數據 (封裝 | 引腳)
- J|14
- FK|20
- W|14
散熱焊盤機械數據 (封裝 | 引腳)
訂購信息
1 Features
- Operating Voltage Range of 4.5 V to 5.5 V
- Outputs Can Drive Up to 10 LSTTL Loads
- Low Power Consumption: 20-µA Maximum ICC
- Typical tpd = 18 ns
- ±4-mA Output Drive at 5 V
- Maximum Low Input Current of 1 µA Maximum
- Inputs Are TTL-Voltage Compatible
2 Applications
- UPS
- White Goods
- Computer Peripherals
- Printers
- AC Servo Drives
- Desktop Computers
3 Description
The SNx4HCT14 devices contain six independent inverters. The devices perform the Boolean function
Y = A in positive logic.
Device Information(1)
| PART NUMBER | PACKAGE | BODY SIZE (NOM) |
|---|---|---|
| SN54HCT14 | CFP (14) | 9.21 mm × 5.97 mm |
| CDIP (14) | 19.56 mm × 6.67 mm | |
| LCCC (20) | 8.89 mm × 8.89 mm | |
| SN74HCT14 | SOIC (14) | 8.65 mm × 3.91 mm |
| TVSOP (14) | 3.60 mm × 4.40 mm | |
| PDIP (14) | 19.30 mm × 6.35 mm | |
| TSSOP (14) | 5.00 mm × 4.40 mm |
- For all available packages, see the orderable addendum at the end of the data sheet.

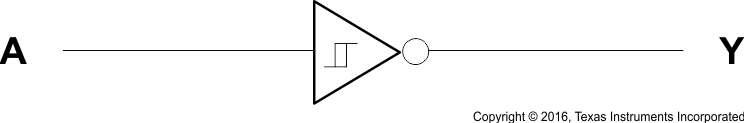

Logic Diagram (Positive Logic)
