SBOS392H August 2007 – August 2019 REF3312 , REF3318 , REF3320 , REF3325 , REF3330 , REF3333
PRODUCTION DATA.
- 1 Features
- 2 Applications
- 3 Description
- 4 Revision History
- 5 Device Comparison
- 6 Pin Configuration and Functions
- 7 Specifications
- 8 Parameter Measurement Information
- 9 Detailed Description
-
10Applications and Implementation
- 10.1 Application Information
- 10.2
Typical Applications
- 10.2.1
REF3312 in a Bipolar Signal-Chain Configuration
- 10.2.1.1 Design Requirements
- 10.2.1.2 Detailed Design Procedure
- 10.2.1.3 Application Curves
- 10.2.1
REF3312 in a Bipolar Signal-Chain Configuration
- 11Power-Supply Recommendations
- 12Layout
- 13Device and Documentation Support
- 14Mechanical, Packaging, and Orderable Information
封裝選項
機械數(shù)據(jù) (封裝 | 引腳)
散熱焊盤機械數(shù)據(jù) (封裝 | 引腳)
訂購信息

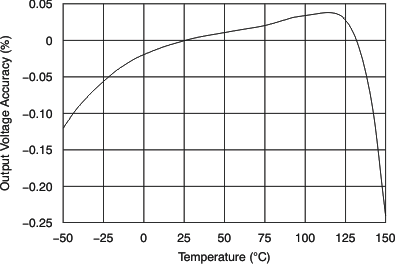

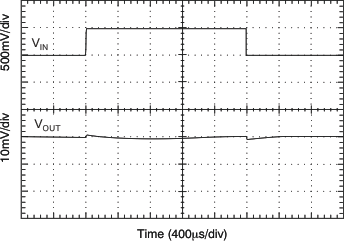

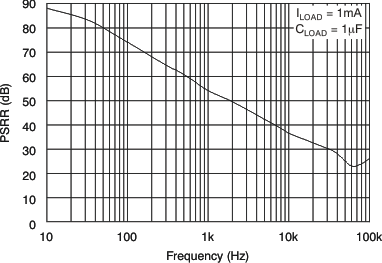

7.6 Typical Characteristics

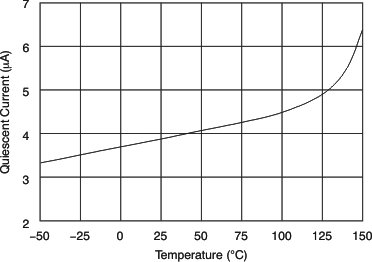

At TA = 25°C and VIN = 5 V, and REF3325 used for typical characteristic measurements (unless otherwise noted).

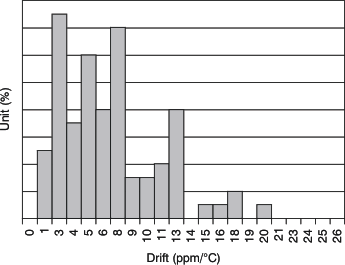

| 0°C to 70°C | ||
| CLOAD = 10 μF, IOUT = 0 mA | ||

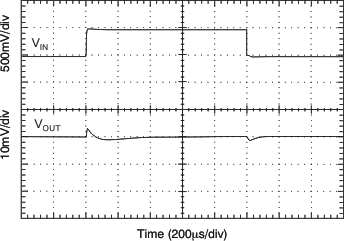

| CLOAD = 10 μF, IOUT = 1 mA | ||

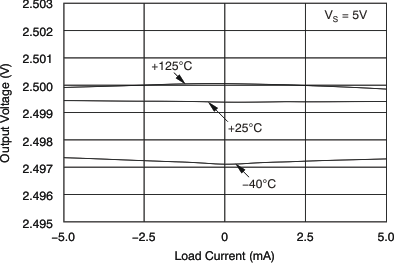

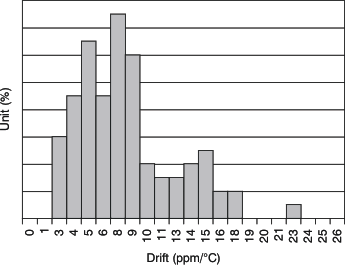

| –40°C to 125°C | ||

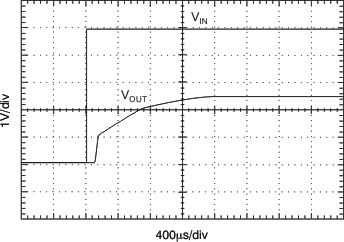

| CL = 1-μF Startup | ||

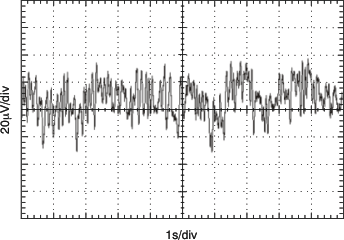

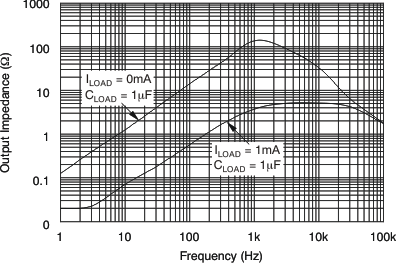

| CL = 1 μF, IOUT = 0 mA | ||

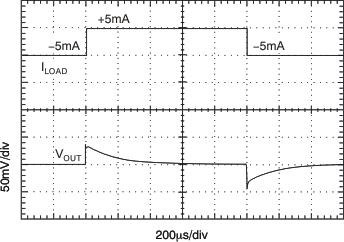

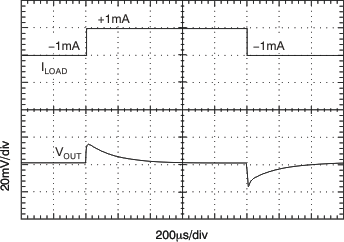

| CL = 1 μF, ±5-mA Output Pulse | ||

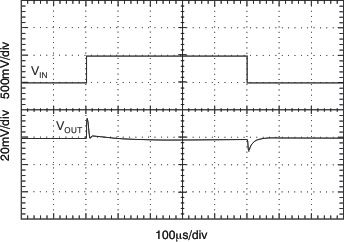

| CL = 1 μF, ±1-mA Output Pulse | ||
