7 Parameter Measurement Information
CL includes probe and
jig capacitance.
All inputs are supplied by
generators having the following characteristics: PRR ≤ 10 MHz, ZO =
50 ?, tr/tf ≤ 30 ns.
All parameters and waveforms are
not applicable to all devices.
Figure 7-1 I2C Interface Load Circuit And Voltage Waveforms
CL includes probe and
jig capacitance.
All inputs are supplied by
generators having the following characteristics: PRR ≤ 10 MHz, ZO =
50 ?, tr/tf ≤ 30 ns.
All parameters and waveforms are
not applicable to all devices.
Figure 7-2 Interrupt
Load Circuit And Voltage Waveforms
CL includes probe and
jig capacitance.
tpv is measured from
0.7 × VCC on SCL to 50% I/O (Pn) output.
All inputs are supplied by
generators having the following characteristics: PRR ≤ 10 MHz, ZO =
50 ?, tr/tf ≤ 30 ns.
The outputs are measured one at a
time, with one transition per measurement.
All parameters and waveforms are
not applicable to all devices.
Figure 7-3 P-Port
Load Circuit And Voltage Waveforms
CL includes probe and
jig capacitance.
All inputs are supplied by
generators having the following characteristics: PRR ≤ 10 MHz, ZO =
50 ?, tr/tf ≤ 30 ns.
The outputs are measured one at a
time, with one transition per measurement.
I/Os are configured as
inputs.
All parameters and waveforms are
not applicable to all devices.

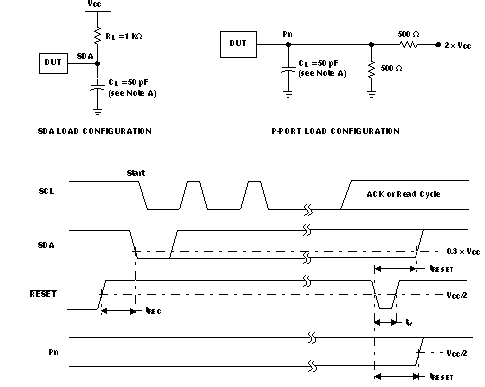

Figure 7-4 Reset
Load Circuits And Voltage Waveforms
