6 Parameter Measurement Information
CL includes probe
and jig capacitance.
All inputs are supplied by
generators having the following characteristics: PRR ≤ 10 MHz, ZO
= 50 ?, tr/tf ≤ 30 ns.
All parameters and waveforms
are not applicable to all devices.
Figure 6-1 I2C Interface Load Circuit and Voltage Waveforms
CL includes probe
and jig capacitance.
All inputs are supplied by
generators having the following characteristics: PRR ≤ 10 MHz, ZO
= 50 ?, tr/tf ≤ 30 ns.
All parameters and waveforms
are not applicable to all devices.
Figure 6-2 Interrupt Load Circuit and Voltage Waveforms
CL includes probe
and jig capacitance.
All inputs are supplied by
generators having the following characteristics: PRR ≤ 10 MHz, ZO
= 50 ?, tr/tf ≤ 30 ns.
The outputs are measured one
at a time, with one transition per measurement.
All parameters and waveforms
are not applicable to all devices.
Figure 6-3 P-Port Load Circuit and Voltage Waveforms
CL includes probe
and jig capacitance.
All inputs are supplied by
generators having the following characteristics: PRR ≤ 10 MHz, ZO
= 50 ?, tr/tf ≤ 30 ns.
The outputs are measured one
at a time, with one transition per measurement.
I/Os are configured as
inputs.
All parameters and waveforms
are not applicable to all devices.

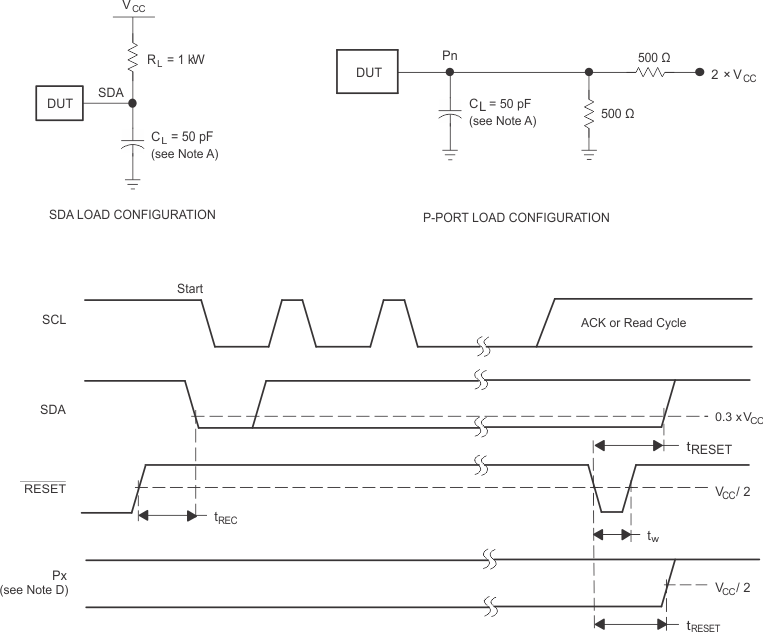

Figure 6-4 Reset
Load Circuits and Voltage Waveforms
