9.2.2 Application Curves
Unless otherwise stated, application performance curves were taken at TA = 25°C.
Figure 9-2 Efficiency (Linear Scale)
| VIN = 24 V | IOUT = 0.5 A | |
| VIN = 24 V | 150 kHz to 30 MHz | LIN = 4.7 μH |
| IOUT = 0.5 A | CIN = 10 μF |

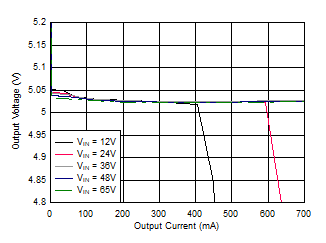

Figure 9-3 Load
Regulation (Linear Scale)
| VIN = 24 V | IOUT = 0.5 A | |

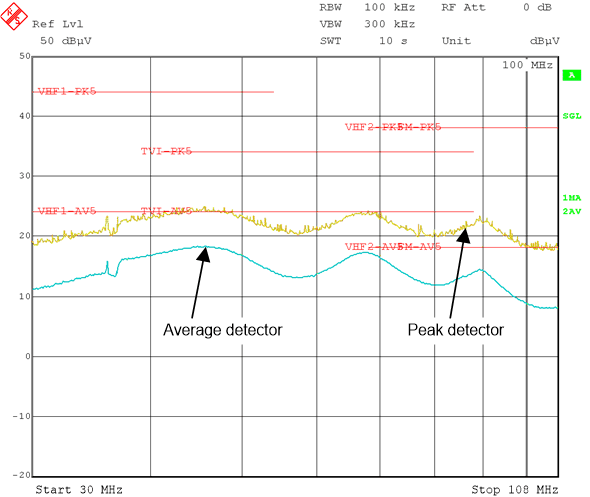

| VIN = 24 V | 30 MHz to 108 MHz | LIN = 4.7 μH |
| IOUT = 0.5 A | CIN = 10 μF |
