ZHCSA24H February 2013 – June 2017 LM5122

PRODUCTION DATA.

封裝選項

機械數據 (封裝 | 引腳)

PWP|20
- MHTS001H
PWP|24
- MPDS372A

散熱焊盤機械數據 (封裝 | 引腳)

PWP|20
- PPTD289A
PWP|24
- PPTD264C

訂購信息

6 Specifications

6.1 Absolute Maximum Ratings

Over operating free-air temperature range (unless otherwise noted)⁽¹⁾

		MIN	MAX	UNIT
Input	VIN, CSP, CSN	–0.3	75	V
	BST to SW, FB, MODE, UVLO, OPT, VCC⁽²⁾	–0.3	15	V
	SW	–5.0	105	V
	BST	–0.3	115	V
	SS, SLOPE, SYNCIN/RT	–0.3	7	V
	CSP to CSN, PGND	–0.3	0.3	V
Output⁽³⁾	HO to SW	–0.3	BST to SW + 0.3	V
	LO	–0.3	VCC + 0.3	V
	COMP, RES, SYNCOUT	–0.3	7	V
Thermal	Junction temperature	–40	150	°C
Storage temperature, T_stg		–55	150	°C

(1) Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings only and functional operation of the device at these or any other conditions beyond those indicated under Recommended Operating Conditions are not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability. Unless otherwise specified, all voltages are referenced to AGND pin.

(2) See Application and Implementation when input supply voltage is less than the VCC voltage.

(3) All output pins are not specified to have an external voltage applied.

6.2 ESD Ratings: LM5122, LM5122Z

			VALUE	UNIT
V_(ESD)	Electrostatic discharge	Human body model (HBM), per JESD22-A114 ⁽¹⁾	±2000	V
V_(ESD)	Electrostatic discharge	Charged device model (CDM), per JESD22-C101 ⁽²⁾	±1000	V

(1) JEDEC document JEP155 states that 500-V HBM allows safe manufacturing with a standard ESD control process.

(2) JEDEC document JEP157 states that 250-V CDM allows safe manufacturing with a standard ESD control process.

6.3 Recommended Operating Conditions

over operating free-air temperature range (unless otherwise noted)⁽¹⁾

		MIN	MAX	UNIT
Input supply voltage⁽²⁾	VIN	4.5	65	V
Low-side driver bias voltage	VCC		14	V
High-side driver bias voltage	BST to SW	3.8	14	V
Current sense common mode range⁽²⁾	CSP, CSN	3	65	V
Switch node voltage	SW		100	V
Junction temperature, T_J		–40	125	°C

(1) Recommended Operating Conditions are conditions under which operation of the device is intended to be functional, but do not ensure specific performance limits.

(2) Minimum VIN operating voltage is always 4.5 V. The minimum input power supply voltage can be 3 V after start-up, assuming VIN voltage is supplied from an available external source.

6.4 Thermal Information

THERMAL METRIC		LM5122, LM5122Z		UNIT
		PWP
		20 PINS	24 PINS
R_θJA	Junction-to-ambient thermal resistance	36	32.4	°C/W
R_θJC(top)	Junction-to-case (top) thermal resistance	20.1	15.6	°C/W
R_θJB	Junction-to-board thermal resistance	16.8	7.5	°C/W
ψ_JT	Junction-to-top characterization parameter	0.4	0.2	°C/W
ψ_JB	Junction-to-board characterization parameter	16.7	7.7	°C/W
R_θJC(bot)	Junction-to-case (bottom) thermal resistance	1.7	1.1	°C/W

6.5 Electrical Characteristics

Unless otherwise specified, these specifications apply for –40°C ≤ T_J ≤ +125°C, V_VIN = 12 V, V_VCC = 8.3 V, R_T = 20 kΩ, no load on LO and HO. Typical values represent the most likely parametric norm at T_J = 25°C and are provided for reference purposes only.

	PARAMETER	TEST CONDITIONS	MIN	TYP	MAX	UNIT
VIN SUPPLY

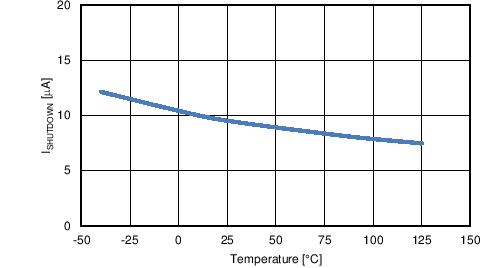

I_SHUTDOWN	VIN shutdown current	V_UVLO = 0 V		9	17	µA
I_BIAS	VIN operating current (exclude the current into RT resistor)	V_UVLO = 2 V, non-switching		4	5	mA
VCC REGULATOR

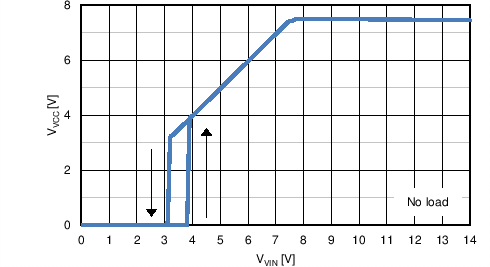

V_CC(REG)	VCC regulation	No load	6.9	7.6	8.3	V
	VCC dropout (VIN to VCC)	V_VIN = 4.5 V, no external load			0.25	V
	VCC dropout (VIN to VCC)	V_VIN = 4.5 V, I_VCC = 25 mA		0.28	0.5	V

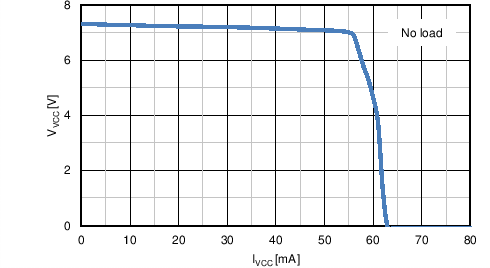

	VCC sourcing current limit	V_VCC = 0 V	50	62		mA
I_VCC	VCC operating current (exclude the current into RT resistor)	V_VCC = 8.3 V		3.5	5	mA
I_VCC		V_VCC = 12 V		4.5	8	mA
	VCC undervoltage threshold	VCC rising, V_VIN = 4.5 V	3.9	4	4.1	V
	VCC undervoltage threshold	VCC falling, V_VIN = 4.5 V			3.7	V
	VCC undervoltage hysteresis			0.385		V
UNDERVOLTAGE LOCKOUT
	UVLO threshold	UVLO rising	1.17	1.2	1.23	V
	UVLO hysteresis current	V_UVLO = 1.4 V	7	10	13	µA
	UVLO standby enable threshold	UVLO rising	0.3	0.4	0.5	V
	UVLO standby enable hysteresis			0.1	0.125	V
MODE
	Diode emulation mode threshold	MODE rising	1.2	1.24	1.28	V
	Diode emulation mode hysteresis			0.1		V
	Default MODE voltage		145	155	170	mV
	Default skip cycle threshold	COMP rising, measured at COMP		1.290		V
	Default skip cycle threshold	COMP falling, measured at COMP		1.245		V
	Skip cycle hysteresis	Measured at COMP		40		mV

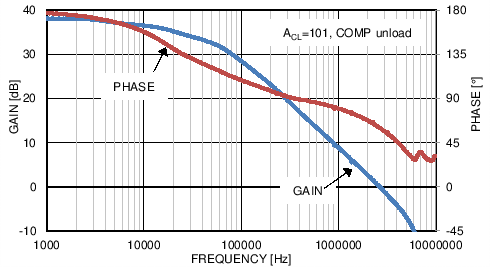

ERROR AMPLIFIER
V_REF	FB reference voltage	Measured at FB, V_FB = V_COMP	1.188	1.2	1.212	V
	FB input bias current	V_FB = V_REF		5		nA
V_OH	COMP output high voltage	I_SOURCE = 2 mA, V_VCC = 4.5 V	2.75			V
V_OH	COMP output high voltage	I_SOURCE = 2 mA, V_VCC = 12 V	3.4			V
V_OL	COMP output low voltage	I_SINK = 2 mA			0.25	V
A_OL	DC gain			80		dB
f_BW	Unity gain bandwidth			3		MHz
	Slave mode threshold	FB rising		2.7	3.4	V
OSCILLATOR
f_SW1	Switching frequency 1	R_T = 20 kΩ	400	450	500	kHz
f_SW2	Switching frequency 2	R_T = 10 kΩ	775	875	975	kHz
	RT output voltage			1.2		V
	RT sync rising threshold	RT rising		2.5	2.9	V
	RT sync falling threshold	RT falling	1.6	2.0		V
	Minimum sync pulse width		100			ns
SYNCOUT
	SYNCOUT high-state voltage	I_SYNCOUT = –1 mA	3.3	4.3		V
	SYNCOUT low-state voltage	I_SYNCOUT = 1 mA		0.15	0.25	V
OPT
	Synchronization selection threshold	OPT rising	2	3	4	V
SLOPE COMPENSATION
	SLOPE output voltage		1.17	1.2	1.23	V
V_SLOPE	Slope compensation amplitude	R_SLOPE = 20 kΩ, f_SW = 100 kHz, 50% duty cycle, T_J = –40°C to 125°C	1.375	1.65	1.925	V
V_SLOPE	Slope compensation amplitude	R_SLOPE= 20 kΩ, f_SW= 100 kHz, 50% duty cycle, T_J = 25°C	1.4	1.65	1.9	V
SOFT START
I_SS-SOURCE	SS current source	V_SS = 0 V	7.5	10	12	µA
	SS discharge switch R_DS-ON			13		Ω
PWM COMPARATOR
t_LO-OFF	Forced LO off-time	V_VCC = 5.5 V		330	400	ns
t_LO-OFF	Forced LO off-time	V_VCC = 4.5 V		560	750	ns
t_ON-MIN	Minimum LO on-time	R_SLOPE = 20 kΩ		150		ns
t_ON-MIN	Minimum LO on-time	R_SLOPE = 200 kΩ		300		ns
	COMP to PWM voltage drop	T_J = –40°C to 125°C	0.95	1.1	1.25	V
	COMP to PWM voltage drop	T_J = 25°C	1	1.1	1.2	V
CURRENT SENSE / CYCLE-BY-CYCLE CURRENT LIMIT

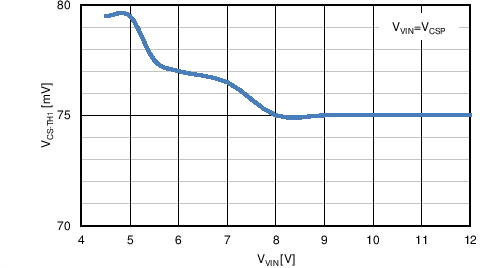

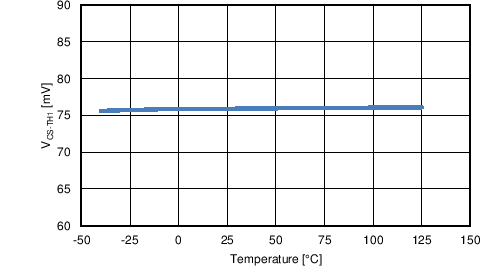

V_CS-TH1	Cycle-by-cycle current limit threshold	CSP to CSN, T_J = –40°C to 125°C	65.5	75	87.5	mV
V_CS-TH1	Cycle-by-cycle current limit threshold	CSP to CSN, T_J = 25°C	67	75	86	mV
V_CS-ZCD	Zero cross detection threshold	CSP to CSN, rising		7		mV
V_CS-ZCD	Zero cross detection threshold	CSP to CSN, falling	0.5	6	12	mV
	Current sense amplifier gain			10		V/V

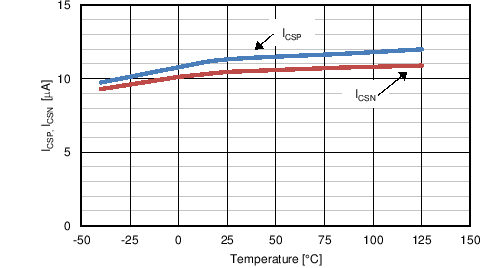

I_CSP	CSP input bias current			12		µA
I_CSN	CSN input bias current			11		µA
	Bias current matching	I_CSP – I_CSN	–1.75	1	3.75	µA
	Bias current matching	I_CSP – I_CSN (LM5122Z only)	–2.5	1	8.75	µA
	CS to LO delay	Current sense / current limit delay		150		ns
HICCUP-MODE RESTART
V_RES	Restart threshold	RES rising	1.15	1.2	1.25	V
V_HCP-UPPER	Hiccup counter upper threshold	RES rising		4.2		V
V_HCP-UPPER	Hiccup counter upper threshold	RES rising, V_VIN = V_VCC = 4.5 V		3.6		V
V_HCP-LOWER	Hiccup counter lower threshold	RES falling		2.15		V
V_HCP-LOWER	Hiccup counter lower threshold	RES falling, V_VIN = V_VCC = 4.5 V		1.85		V
I_RES-SOURCE1	RES current source1	Fault-state charging current	20	30	40	µA
I_RES-SINK1	RES current sink1	Normal-state discharging current		5		µA
I_RES-SOURCE2	RES current source2	Hiccup-mode off-time charging current		10		µA
I_RES-SINK2	RES current sink2	Hiccup-mode off-time discharging current		5		µA
	Hiccup cycle			8		Cycles
	RES discharge switch R_DS-ON			40		Ω
	Ratio of hiccup mode off-time to restart delay time			122

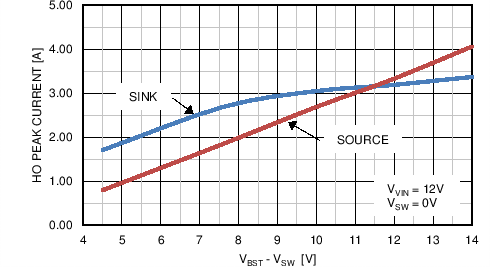

HO GATE DRIVER
V_OHH	HO high-state voltage drop	I_HO = –100 mA, V_OHH = V_BST –V_HO		0.15	0.24	V
V_OLH	HO low-state voltage drop	I_HO = 100 mA, V_OLH = V_HO –V_SW		0.1	0.18	V
	HO rise time (10% to 90%)	C_LOAD = 4700 pF, V_BST = 12 V		25		ns
	HO fall time (90% to 10%)	C_LOAD = 4700 pF, V_BST = 12 V		20		ns
I_OHH	Peak HO source current	V_HO = 0 V, V_SW = 0 V, V_BST = 4.5 V		0.8		A
I_OHH	Peak HO source current	V_HO = 0 V, V_SW = 0 V, V_BST = 7.6 V		1.9		A
I_OLH	Peak HO sink current	V_HO = V_BST = 4.5 V		1.9		A
I_OLH	Peak HO sink current	V_HO = V_BST= 7.6 V		3.2		A

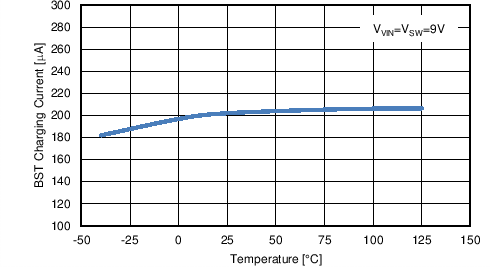

I_BST	BST charge pump sourcing current	V_VIN = V_SW = 9. V , V_BST - V_SW = 5 V	100	200		µA

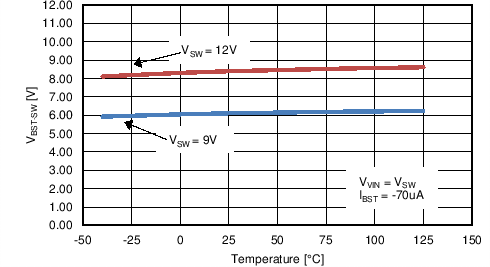

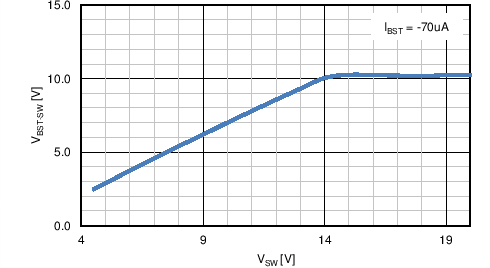

	BST charge pump regulation	B_ST to SW, I_BST= –70 μA, V_VIN = V_SW = 9 V	5.3	6.2	6.75	V
	BST charge pump regulation	B_ST to SW, I_BST = –70 μA, V_VIN = V_SW = 12 V	7	8.5	9	V
	BST to SW undervoltage		2	3	3.5	V
	BST DC bias current	V_BST – V_SW = 12 V, V_SW = 0 V		30	45	µA

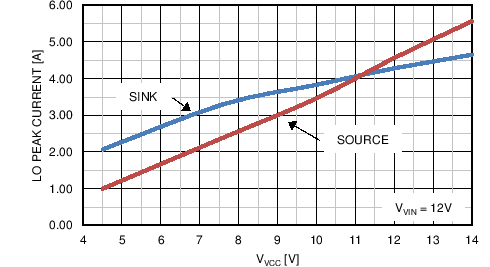

LO GATE DRIVER
V_OHL	LO high-state voltage drop	I_LO = –100 mA, V_OHL = V_VCC –V_LO		0.15	0.25	V
V_OLL	LO low-state voltage drop	I_LO = 100 mA, V_OLL = V_LO		0.1	0.17	V
	LO rise time (10% to 90%)	C_LOAD = 4700 pF		25		ns
	LO fall time (90% to 10%)	C_LOAD = 4700 pF		20		ns
I_OHL	Peak LO source current	V_LO= 0 V, V_VCC = 4.5 V		0.8		A
I_OHL	Peak LO source current	V_LO = 0 V		2		A
I_OLL	Peak LO sink current	V_LO = V_VCC = 4.5 V		1.8		A
I_OLL	Peak LO sink current	V_LO = V_VCC		3.2		A
SWITCHING CHARACTERISTICS

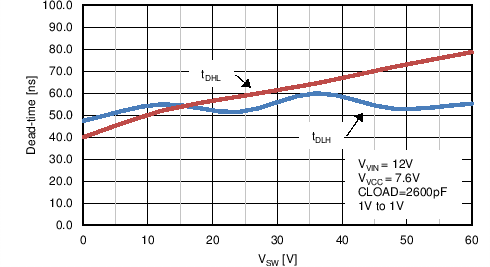

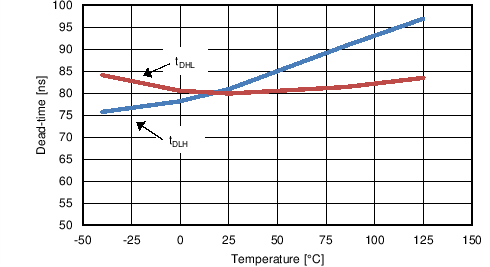

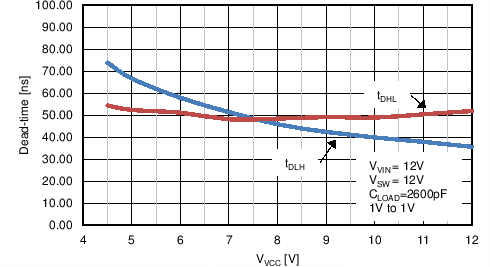

t_DLH	LO fall to HO rise delay	No load, 50% to 50%	50	80	115	ns
t_DLH	LO fall to HO rise delay	No load, 50% to 50% (LM5122Z only)	50	80	145	ns
t_DHL	HO fall to LO rise delay	No load, 50% to 50%	60	80	105	ns
THERMAL
T_SD	Thermal shutdown	Temperature rising		165		°C
	Thermal shutdown hysteresis			25		°C
