7 Parameter Measurement Information
7.1 Test Circuits
Component Values shown are for VIN = 15 V,
VOUT = 5 V, ILOAD = 2 A.
CIN — 470-µF, 50-V aluminum electrolytic Nichicon PM Series
COUT — 220-µF, 25-V aluminum electrolytic Nichcon PM Series
D1 — 3.3-A, 60-V Schottky Rectifier, 21DQ06 (international rectifier)
L1 — 33 µH, see Inductors Selection Procedure

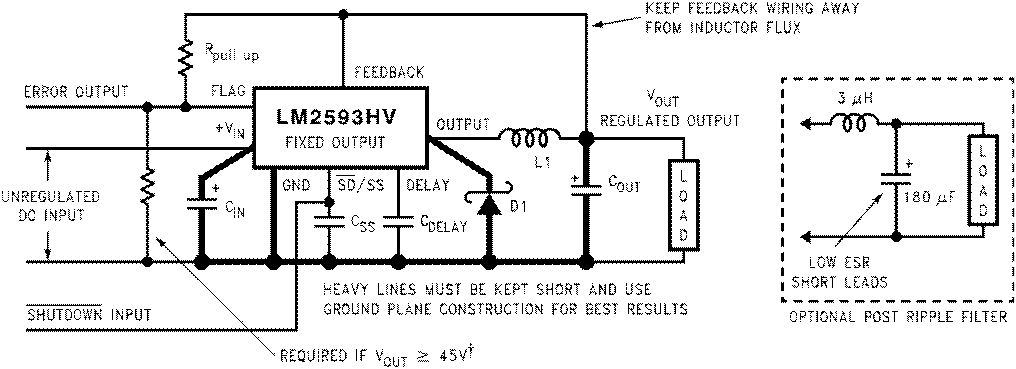

Figure 23. Fixed Output Voltage Versions
VOUT = 5 V, ILOAD = 2 A.
CIN — 470-µF, 50-V aluminum electrolytic Nichicon PM Series
COUT — 220-µF, 25-V aluminum electrolytic Nichcon PM Series
D1 — 3.3-A, 60-V Schottky Rectifier, 21DQ06 (international rectifier)
L1 — 33 µH, see Inductors Selection Procedure
Select R1 to be approximately 1 kΩ, use a 1% resistor for best stability.
Component values shown are for VIN = 20 V,
VOUT = 10 V, ILOAD = 2 A.
CIN — 470-µF, 35-V aluminum electrolytic Nichicon PM Series
COUT — 220-µF, 35-V aluminum electrolytic Nichicon PM Series
D1 — 3.3-A, 60-V Schottky Rectifier, 21DQ06 (international rectifier)
L1 — 47 µH, see Inductors Selection Procedure
R1 — 1 kΩ, 1%
R2 — 7.15 k, 1%
CFF — 3.3 nF
Typical Values
CSS — 0.1 µF
CDELAY — 0.1 µF
RPULL UP — 4.7 k (use 22 k if VOUT is ≥ 45 V)
† Resistive divider is required to avoid exceeding maximum rating of 45 V, 3 mA on or into flag pin.
†† Small signal Schottky diode to prevent damage to feedback pin by negative spike when output is shorted (CFF not being able to discharge immediately will drag feedback pin below ground). Required if VIN > 40 V.

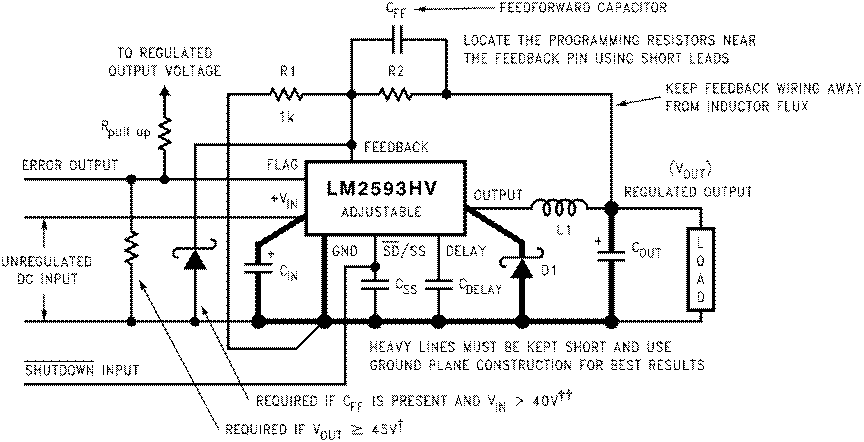

Figure 24. Adjustable Output Voltage Versions
Component values shown are for VIN = 20 V,
VOUT = 10 V, ILOAD = 2 A.
CIN — 470-µF, 35-V aluminum electrolytic Nichicon PM Series
COUT — 220-µF, 35-V aluminum electrolytic Nichicon PM Series
D1 — 3.3-A, 60-V Schottky Rectifier, 21DQ06 (international rectifier)
L1 — 47 µH, see Inductors Selection Procedure
R1 — 1 kΩ, 1%
R2 — 7.15 k, 1%
CFF — 3.3 nF
Typical Values
CSS — 0.1 µF
CDELAY — 0.1 µF
RPULL UP — 4.7 k (use 22 k if VOUT is ≥ 45 V)
† Resistive divider is required to avoid exceeding maximum rating of 45 V, 3 mA on or into flag pin.
†† Small signal Schottky diode to prevent damage to feedback pin by negative spike when output is shorted (CFF not being able to discharge immediately will drag feedback pin below ground). Required if VIN > 40 V.
