7 Detailed Description
7.1 Overview
The DS100KR800 is a low-power media compensation, 8-channel repeater optimized for 10G–KR. The DS100KR800 compensates for lossy FR-4 printed-circuit-board backplanes and balanced cables. The DS100KR800 operates in 3 modes: Pin control mode (ENSMB = 0), SMBus slave mode (ENSMB = 1) and SMBus master mode (ENSMB = float) to load register information from external EEPROM; refer to SMBUS master mode for additional information.

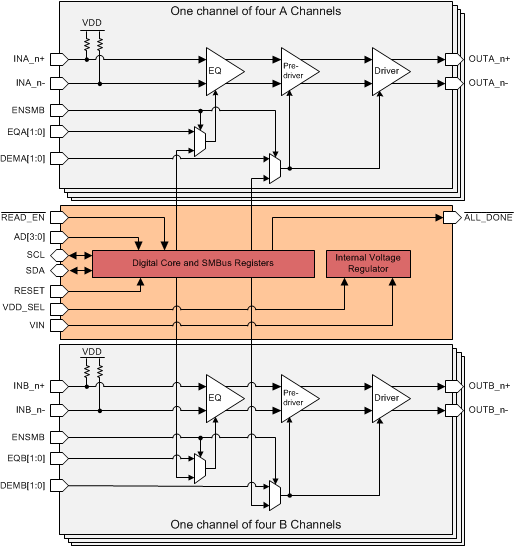

7.2 Functional Block Diagram
7.3 Feature Description
7.3.1 4-Level Input Configuration Guidelines
The 4-level input pins use a resistor divider to help set the four valid control levels and provide a wider range of control settings when ENSMB = 0. There is an internal 30-kΩ pullup and a 60-kΩ pulldown connected to the package pin. These resistors, together with the external resistor connection, combine to achieve the desired voltage level. By using the 1-kΩ pulldown, 20-kΩ pulldown, no connect, and 1-kΩ pullup, the optimal voltage levels for each of the four input states are achieved as shown in Table 1.
Table 1. 4–Level Control Pin Settings
| LEVEL | SETTING | RESULTING PIN VOLTAGE | |
|---|---|---|---|
| 3.3-V MODE | 2.5-V MODE | ||
| 0 | Tie 1 kΩ to GND | 0.1 V | 0.08 V |
| R | Tie 20 kΩ to GND | 1/3 x VIN | 1/3 x VDD |
| F | Float (leave pin open) | 2/3 x VIN | 2/3 x VDD |
| 1 | Tie 1 kΩ to VIN or VDD | VIN – 0.05 V | VDD – 0.04 V |
The typical 4-level input thresholds are as follows:
- Internal Threshold between 0 and R = 0.2 × VIN or VDD
- Internal Threshold between R and F = 0.5 × VIN or VDD
- Internal Threshold between F and 1 = 0.8 × VIN or VDD
In order to minimize the start-up current associated with the integrated 2.5-V regulator, the 1-kΩ pullup and pulldown resistors are recommended. If several four level inputs require the same setting, it is possible to combine two or more 1-kΩ resistors into a single lower value resistor. As an example, combining two inputs with a single 500-Ω resistor is a valid way to save board space.
7.4 Device Functional Modes
7.4.1 Pin Control Mode
When in pin mode (ENSMB = 0) , the repeater is configurable with external pins. Equalization and de-emphasis can be selected through pin for each side independently. When de-emphasis is asserted VOD is automatically adjusted per the Table 3. The receiver electrical idle detect threshold is also adjustable through the SD_TH pin.
7.4.2 SMBUS Mode
When in SMBus mode (ENSMB = 1), the VOD (output amplitude), equalization, de-emphasis, and termination disable features are all programmable on a individual lane basis, instead of grouped by A or B as in the pin mode case. Upon assertion of ENSMB the MODE, EQx and DEMx functions revert to register control immediately. The EQx and DEMx pins are converted to AD0-AD3 SMBus address inputs. The other external control pins remain active unless their respective registers are written to and the appropriate override bit is set, in which case they are ignored until ENSMB is driven low (pin mode). On power-up and when ENSMB is driven low all registers are reset to their default state. If RESET is asserted while ENSMB is high, the registers retain their current state.
Equalization settings accessible through the pin controls were chosen to meet the needs of most applications. If additional fine tuning or adjustment is needed, additional equalization settings can be accessed through the SMBus registers. Each input has a total of 256 possible equalization settings. The tables show the 16 setting when the device is in pin mode. When using SMBus mode, the equalization, VOD and de-Emphasis levels are set by registers.
The input control pins have been enhanced to have 4 different levels and provide a wider range of control settings when ENSMB=0.
Table 2. Equalizer Settings
| LEVEL | EQA1 EQB1 |
EQA0 EQB0 |
EQ – 8 BITS [7:0] | dB AT 1 GHz |
dB AT 3 GHz |
dB AT 5 GHz |
SUGGESTED USE |
|---|---|---|---|---|---|---|---|
| 1 | 0 | 0 | 0000 0000 = 0x00 | 1.7 | 4.2 | 5.3 | FR4 < 5 inch trace |
| 2 | 0 | R | 0000 0001 = 0x01 | 2.8 | 6.6 | 8.7 | FR4 5 inch 5–mil trace |
| 3 | 0 | Float | 0000 0010 = 0x02 | 4.1 | 8.6 | 10.6 | FR4 5 inch 4–mil trace |
| 4 | 0 | 1 | 0000 0011 = 0x03 | 5.1 | 9.8 | 11.7 | FR4 10 inch 5–mil trace |
| 5 | R | 0 | 0000 0111 = 0x07 | 6.2 | 12.4 | 15.6 | FR4 10 inch 4–mil trace |
| 6 | R | R | 0001 0101 = 0x15 | 5.1 | 12 | 16.6 | FR4 15 inch 4–mil trace |
| 7 | R | Float | 0000 1011 = 0x0B | 7.7 | 15 | 18.3 | FR4 20 inch 4–mil trace |
| 8 | R | 1 | 0000 1111 = 0x0F | 8.8 | 16.5 | 19.7 | FR4 25 to 30 inch 4–mil trace |
| 9 | Float | 0 | 0101 0101 = 0x55 | 6.3 | 14.8 | 20.3 | FR4 30 inch 4–mil trace |
| 10 | Float | R | 0001 1111 = 0x1F | 9.9 | 19.2 | 23.6 | FR4 35 inch 4–mil trace |
| 11 | Float | Float | 0010 1111 = 0x2F | 11.3 | 21.7 | 25.8 | 10m, 30awg cable |
| 12 | Float | 1 | 0011 1111 = 0x3F | 12.4 | 23.2 | 27 | 10m – 12m cable |
| 13 | 1 | 0 | 1010 1010 = 0xAA | 11.9 | 24.1 | 29.1 | |
| 14 | 1 | R | 0111 1111 = 0x7F | 13.6 | 26 | 30.7 | |
| 15 | 1 | Float | 1011 1111 = 0xBF | 15.1 | 28.3 | 32.7 | |
| 16 | 1 | 1 | 1111 1111 = 0xFF | 16.1 | 29.7 | 33.8 |
Table 3. De-emphasis Settings
| LEVEL | DEMA1 DEMB1 |
DEMA0 DEMB0 |
VOD Vp-p | DEM dB | INNER AMPLITUDE Vp-p |
SUGGESTED USE |
|---|---|---|---|---|---|---|
| 1 | 0 | 0 | 0.8 | 0 | 0.8 | FR4 <5 inch 4–mil trace |
| 2 | 0 | R | 0.9 | 0 | 0.9 | FR4 <5 inch 4–mil trace |
| 3 | 0 | Float | 0.9 | –3.5 | 0.6 | FR4 10 inch 4–mil trace |
| 4 | 0 | 1 | 1 | 0 | 1 | FR4 <5 inch 4–mil trace |
| 5 | R | 0 | 1 | –3.5 | 0.7 | FR4 10 inch 4–mil trace |
| 6 | R | R | 1 | –6 | 0.5 | FR4 15 inch 4–mil trace |
| 7 | R | Float | 1.1 | 0 | 1.1 | FR4 <5 inch 4–mil trace |
| 8 | R | 1 | 1.1 | –3.5 | 0.7 | FR4 10 inch 4–mil trace |
| 9 | Float | 0 | 1.1 | –6 | 0.6 | FR4 15 inch 4–mil trace |
| 10 | Float | R | 1.2 | 0 | 1.2 | FR4 <5 inch 4–mil trace |
| 11 | Float | Float | 1.2 | –3.5 | 0.8 | FR4 10 inch 4–mil trace |
| 12 | Float | 1 | 1.2 | –6 | 0.6 | FR4 15 inch 4–mil trace |
| 13 | 1 | 0 | 1.3 | 0 | 1.3 | FR4 <5 inch 4–mil trace |
| 14 | 1 | R | 1.3 | –3.5 | 0.9 | FR4 10 inch 4–mil trace |
| 15 | 1 | Float | 1.3 | –6 | 0.7 | FR4 15 inch 4–mil trace |
| 16 | 1 | 1 | 1.3 | –9 | 0.5 | FR4 20 inch 4–mil trace |
Table 4. Signal Detect Threshold Level(1)
| SD_TH | SMBus REG BIT [3:2] AND [1:0] | ASSERT LEVEL (TYP) | DEASSERT LEVEL (TYP) |
|---|---|---|---|
| 0 | 10 | 210 mVp-p | 150 mVp-p |
| R | 01 | 160 mVp-p | 100 mVp-p |
| F (default) | 00 | 180 mVp-p | 110 mVp-p |
| 1 | 11 | 190 mVp-p | 130 mVp-p |
(1) Note: VDD = 2.5 V, 25°C and 0101 pattern at 8 Gbps
7.5 Programming
7.5.1 SMBUS Master Mode
The DS100KR800 devices support reading directly from an external EEPROM device by implementing SMBus Master mode. When using the SMBus master mode, the DS100KR800 will read directly from specific location in the external EEPROM. When designing a system for using the external EEPROM, the user needs to follow these specific guidelines.
- Set ENSMB = Float — enable the SMBUS master mode.
- The external EEPROM device address byte must be 0xA0'h and capable of 1-MHz operation at 2.5-V and 3.3-V supply. The maximum allowed size is 8 kbits (1024 bytes).
- Set the AD[3:0] inputs for SMBus address byte. When the AD[3:0] = 0000'b, the device address byte is B0'h.
When tying multiple DS100KR800 devices to the SDA and SCL bus, use these guidelines to configure the devices.
- Use SMBus AD[3:0] address bits so that each device can loaded it's configuration from the EEPROM. Example below is for 4 device
- Use a pullup resistor on SDA and SCL; value = 2 kΩ
- Daisy-chain READEN# (pin 26) and ALL_DONE# (pin 27) from one device to the next device in the sequence so that they do not compete for the EEPROM at the same time.
- Tie READEN# of the 1st device in the chain (U1) to GND
- Tie ALL_DONE# of U1 to READEN# of U2
- Tie ALL_DONE# of U2 to READEN# of U3
- Tie ALL_DONE# of U3 to READEN# of U4
- Optional: Tie ALL_DONE# output of U4 to a LED to show the devices have been loaded successfully
U1: AD[3:0] = 0000 = 0xB0'h,
U2: AD[3:0] = 0001 = 0xB2'h,
U3: AD[3:0] = 0010 = 0xB4'h,
U4: AD[3:0] = 0011 = 0xB6'h
Below is an example of a 2 kbits (256 × 8-bit) EEPROM in hex format for the DS100KR800 device. The first 3 bytes of the EEPROM always contain a header common and necessary to control initialization of all devices connected to the I2C bus. CRC enable flag to enable/disable CRC checking. If CRC checking is disabled, a fixed pattern (8’hA5) is written or read instead of the CRC byte from the CRC location, to simplify the control. There is a MAP bit to flag the presence of an address map that specifies the configuration data start in the EEPROM. If the MAP bit is not present the configuration data start address is derived from the DS100KR800 address and the configuration data size. A bit to indicate an EEPROM size > 256 bytes is necessary to properly address the EEPROM. There are 37 bytes of data size for each DS100KR800 device.
:2000000000001000000407002FAD4002FAD4002FAD4002FAD409805F5A8005F5A8005F5AD0
:200020008005F5A800005454000000000000000000000000000000000000000000000000F6
:20006000000000000000000000000000000000000000000000000000000000000000000080
:20008000000000000000000000000000000000000000000000000000000000000000000060
:2000A000000000000000000000000000000000000000000000000000000000000000000040
:2000C000000000000000000000000000000000000000000000000000000000000000000020
:2000E000000000000000000000000000000000000000000000000000000000000000000000
:200040000000000000000000000000000000000000000000000000000000000000000000A0
NOTE
The maximum EEPROM size supported is 8 kbits (1024 x 8 bits). For more information in regards to EEPROM programming and the hex format, see SNLA228.
7.6 Register Maps
7.6.1 System Management Bus (SMBus) and Configuration Registers
The System Management Bus interface is compatible to SMBus 2.0 physical layer specification. ENSMB = 1 kΩ to VDD to enable SMBus slave mode and allow access to the configuration registers.
The DS100KR800 has the AD[3:0] inputs in SMBus mode. These pins are the user set SMBUS slave address inputs. The AD[3:0] pins have internal pulldown. When left floating or pulled low the AD[3:0] = 0000'b, the device default address byte is B0'h. Based on the SMBus 2.0 specification, the DS100KR800 has a 7-bit slave address. The LSB is set to 0'b (for a WRITE). The device supports up to 16 address byte, which can be set with the AD[3:0] inputs. Below are the 16 addresses.
Table 5. Device Slave Address Bytes
| AD[3:0] SETTINGS | ADDRESS BYTES (HEX) |
|---|---|
| 0000 | B0 |
| 0001 | B2 |
| 0010 | B4 |
| 0011 | B6 |
| 0100 | B8 |
| 0101 | BA |
| 0110 | BC |
| 0111 | BE |
| 1000 | C0 |
| 1001 | C2 |
| 1010 | C4 |
| 1011 | C6 |
| 1100 | C8 |
| 1101 | CA |
| 1110 | CC |
| 1111 | CE |
The SDA, SCL pins are 3.3-V tolerant, but are not 5-V tolerant. External pullup resistor is required on the SDA. The resistor value can be from 1 kΩ to 5 kΩ depending on the voltage, loading and speed. The SCL may also require an external pullup resistor and it depends on the Host that drives the bus.
7.6.1.1 Transfer of Data Through the SMBus
During normal operation the data on SDA must be stable during the time when SCL is High.
There are three unique states for the SMBus:
START: A High-to-Low transition on SDA while SCL is High indicates a message START condition.
STOP: A Low-to-High transition on SDA while SCL is High indicates a message STOP condition.
IDLE: If SCL and SDA are both High for a time exceeding tBUF from the last detected STOP condition or if they are High for a total exceeding the maximum specification for tHIGH then the bus will transfer to the IDLE state.
7.6.1.2 SMBus Transactions
The device supports WRITE and READ transactions. See Table 6 for register address, type (Read/Write, Read Only), default value and function information.
7.6.1.3 Writing a Register
To write a register, the following protocol is used (see SMBus 2.0 specification).
- The Host drives a START condition, the 7-bit SMBus address, and a 0 indicating a WRITE.
- The Device (Slave) drives the ACK bit (0).
- The Host drives the 8-bit Register Address.
- The Device drives an ACK bit (0).
- The Host drive the 8-bit data byte.
- The Device drives an ACK bit (0).
- The Host drives a STOP condition.
The WRITE transaction is completed, the bus goes IDLE and communication with other SMBus devices may now occur.
7.6.1.4 Reading a Register
To read a register, the following protocol is used (see SMBus 2.0 specification).
- The Host drives a START condition, the 7-bit SMBus address, and a 0 indicating a WRITE.
- The Device (Slave) drives the ACK bit (0).
- The Host drives the 8-bit Register Address.
- The Device drives an ACK bit (0).
- The Host drives a START condition.
- The Host drives the 7-bit SMBus Address, and a 1 indicating a READ.
- The Device drives an ACK bit 0.
- The Device drives the 8-bit data value (register contents).
- The Host drives a NACK bit 1 indicating end of the READ transfer.
- The Host drives a STOP condition.
The READ transaction is completed, the bus goes IDLE and communication with other SMBus devices may now occur.
See Table 6 for more information.
Table 6. SMbus Register Description Table
| ADDRESS | REGISTER NAME |
BIT | FIELD | TYPE | DEFAULT | EEPROM REG BIT |
DESCRIPTION |
|---|---|---|---|---|---|---|---|
| 0x00 | Observation | 7 | Reserved | R/W | 0x00 | Set bit to 0 | |
| 6:3 | Address Bit AD[3:0] |
R | Observation of AD[3:0] bits [6]: AD3 [5]: AD2 [4]: AD1 [3]: AD0 |
||||
| 2 | EEPROM Read Done | R | 1 = Device completed the read from external EEPROM | ||||
| 1 | Reserved | R/W | Set bit to 0 | ||||
| 0 | Reserved | R/W | Set bit to 0 | ||||
| 0x01 | PWDN Channels | 7:0 | PWDN CHx | R/W | 0x00 | Yes | Power Down per Channel [7]: CH7 – CHA_3 [6]: CH6 – CHA_2 [5]: CH5 – CHA_1 [4]: CH4 – CHA_0 [3]: CH3 – CHB_3 [2]: CH2 – CHB_2 [1]: CH1 – CHB_1 [0]: CH0 – CHB_0 0x00 = all channels enabled 0xFF = all channels disabled Note: Override PWDN pin and enable register control through Reg 0x02[0] |
| 0x02 | Override RESET | 7 | Reserved | R/W | 0x00 | Set bit to 0 | |
| 6 | Reserved | Set bit to 0 | |||||
| 5:2 | Reserved | Yes | Set bits to 0 | ||||
| 1 | Reserved | Set bit to 0 | |||||
| 0 | Override RESET | Yes | 1 = Block RESET pin control (Register control enabled) 0 = Allow RESET pin control (Register control disabled) |
||||
| 0x03 | Reserved | 7:0 | Reserved | R/W | 0x00 | Set bits to 0 | |
| 0x04 | Reserved | 7:0 | Reserved | R/W | 0x00 | Yes | Set bits to 0 |
| 0x05 | Reserved | 7:0 | Reserved | R/W | 0x00 | Reserved | |
| 0x06 | Slave Register Control | 7:5 | Reserved | R/W | 0x10 | Set bits to 0 | |
| 4 | Reserved | Yes | Set bit to 1 | ||||
| 3 | Register Enable | 1 = Enable SMBus Slave Mode Register Control 0 = Disable SMBus Slave Mode Register Control Note: In order to change VOD, DEM, and EQ of the channels in slave mode, this bit must be set to 1. |
|||||
| 2:0 | Reserved | Set bits to 0 | |||||
| 0x07 | Digital Reset and Control | 7 | Reserved | R/W | 0x01 | Set bit to 0 | |
| 6 | Reset Registers | 1 = Self clearing reset for SMBus registers (register settings return to default values) | |||||
| 5 | Reserved | Set bit to 0 | |||||
| 4:0 | Reserved | Set bits to 0 0001'b | |||||
| 0x08 | Override Pin Control |
7 | Reserved | R/W | 0x00 | Set bit to 0 | |
| 6 | Override SD_TH | Yes | 1 = Block SD_TH pin control (Register control enabled) 0 = Allow SD_TH pin control (Register control disabled) |
||||
| 5:2 | Reserved | Yes | Set bits to 0 | ||||
| 1 | Override DEM | Yes | 1 = Block DEM pin control (Register control enabled) 0 = Allow DEM pin control (Register control disabled) |
||||
| 0 | Reserved | Yes | Set bit to 0 | ||||
| 0x09-0x0A | Reserved | 7:0 | Reserved | R/W | 0x00 | Set bits to 0 | |
| 0x0B | Reserved | 7 | Reserved | R/W | 0x00 | Set bit to 0 | |
| 6:0 | Reserved | R/W | 0x70 | Yes | Set bits to 111 0000'b | ||
| 0x0C-0x0D | Reserved | 7:0 | Reserved | R/W | 0x00 | Set bits to 0 | |
| 0x0E | Reserved | 7:6 | Reserved | R/W | 0x00 | Set bits to 0 | |
| 5:4 | Reserved | Yes | Set bits to 0 | ||||
| 3:2 | Reserved | Yes | Set bits to 0 | ||||
| 1:0 | Reserved | Set bits to 0 | |||||
| 0x0F | CH0 - CHB_0 EQ |
7:0 | EQ Control | R/W | 0x2F | Yes | INB_0 EQ Control - total of 256 levels. See . |
| 0x10 | CH0 - CHB_0 VOD |
7 | Short Circuit Protection | R/W | 0xAD | Yes | 1 = Enable the short circuit protection 0 = Disable the short circuit protection |
| 6:3 | Reserved | Yes | Set bits to 0101'b | ||||
| 2:0 | VOD Control | Yes | OUTB_0 VOD Control: 000'b = 0.7 V 001'b = 0.8 V 010'b = 0.9 V 011'b = 1.0 V 100'b = 1.1 V 101'b = 1.2 V (default) 110'b = 1.3 V 111'b = 1.4 V |
||||
| 0x11 | CH0 - CHB_0 DEM |
7 | Reserved | R | 0x02 | Set bit to 0 | |
| 6:5 | Reserved | Set bits to 0 | |||||
| 4:3 | Reserved | R/W | Set bits to 0 | ||||
| 2:0 | DEM Control | Yes | OUTB_0 DEM Control 000'b = 0 dB 001'b = –1.5 dB 010'b = –3.5 dB (default) 011'b = –5 dB 100'b = –6 dB 101'b = –8 dB 110'b = –9 dB 111'b = –12 dB |
||||
| 0x12 | CH0 - CHB_0 SD_TH |
7 | Reserved | R/W | 0x00 | Yes | Set bit to 0 |
| 6:4 | Reserved | Set bits to 0 | |||||
| 3:2 | Signal Detect Status Assert Threshold | Yes | Status Assert threshold 00'b = 180 mVp-p (default) 01'b = 160 mVp-p 10'b = 210 mVp-p 11'b = 190 mVp-p Note: Override SD_TH pin and enable register control through Reg 0x08[6] |
||||
| 1:0 | Signal Detect Status Deassert Threshold |
Yes | Status Deassert threshold 00'b = 110 mVp-p (default) 01'b = 100 mVp-p 10'b = 150 mVp-p 11'b = 130 mVp-p Note: Override SD_TH pin and enable register control through Reg 0x08[6] |
||||
| 0x13-0x14 | Reserved | 7:0 | Reserved | R/W | 0x00 | Set bits to 0 | |
| 0x15 | Reserved | 7:6 | Reserved | R/W | 0x00 | Set bits to 0 | |
| 5:4 | Reserved | Yes | Set bits to 0 | ||||
| 3:2 | Reserved | Yes | Set bits to 0 | ||||
| 1:0 | Reserved | Set bits to 0 | |||||
| 0x16 | CH1 - CHB_1 EQ |
7:0 | EQ Control | R/W | 0x2F | Yes | INB_1 EQ Control - total of 256 levels. See . |
| 0x17 | CH1 - CHB_1 VOD |
7 | Short Circuit Protection | R/W | 0xAD | Yes | 1 = Enable the short circuit protection 0 = Disable the short circuit protection |
| 6:3 | Reserved | Yes | Set bits to 0101'b | ||||
| 2:0 | VOD Control | Yes | OUTB_1 VOD Control: 000'b = 0.7 V 001'b = 0.8 V 010'b = 0.9 V 011'b = 1.0 V 100'b = 1.1 V 101'b = 1.2 V (default) 110'b = 1.3 V 111'b = 1.4 V |
||||
| 0x18 | CH1 - CHB_1 DEM |
7 | Reserved | R | 0x02 | Set bit to 0 | |
| 6:5 | Reserved | Set bits to 0 | |||||
| 4:3 | Reserved | R/W | Set bits to 0 | ||||
| 2:0 | DEM Control | Yes | OUTB_1 DEM Control 000'b = 0 dB 001'b = –1.5 dB 010'b = –3.5 dB (default) 011'b = –5 dB 100'b = –6 dB 101'b = –8 dB 110'b = –9 dB 111'b = –12 dB |
||||
| 0x19 | CH1 - CHB_1 SD_TH |
7 | Reserved | R/W | 0x00 | Yes | Set bit to 0 |
| 6:4 | Reserved | Set bits to 0 | |||||
| 3:2 | Signal Detect Status Assert Threshold | Yes | Status Assert threshold 00'b = 180 mVp-p (default) 01'b = 160 mVp-p 10'b = 210 mVp-p 11'b = 190 mVp-p Note: Override SD_TH pin and enable register control through Reg 0x08[6] |
||||
| 1:0 | Signal Detect Status Deassert Threshold |
Yes | Status Deassert threshold 00'b = 110 mVp-p (default) 01'b = 100 mVp-p 10'b = 150 mVp-p 11'b = 130 mVp-p Note: Override SD_TH pin and enable register control through Reg 0x08[6] |
||||
| 0x1A-0x1B | Reserved | 7:0 | Reserved | R/W | 0x00 | Set bits to 0 | |
| 0x1C | Reserved | 7:6 | Reserved | R/W | 0x00 | Set bits to 0 | |
| 5:4 | Reserved | Yes | Set bits to 0 | ||||
| 3:2 | Reserved | Yes | Set bits to 0 | ||||
| 1:0 | Reserved | Set bits to 0 | |||||
| 0x1D | CH2 - CHB_2 EQ |
7:0 | EQ Control | R/W | 0x2F | Yes | INB_2 EQ Control - total of four levels. See . |
| 0x1E | CH2 - CHB_2 VOD |
7 | Short Circuit Protection | R/W | 0xAD | Yes | 1 = Enable the short circuit protection 0 = Disable the short circuit protection |
| 6:3 | Reserved | Yes | Set bits to 0101'b | ||||
| 2:0 | VOD Control | Yes | OUTB_2 VOD Control: 000'b = 0.7 V 001'b = 0.8 V 010'b = 0.9 V 011'b = 1.0 V 100'b = 1.1 V 101'b = 1.2 V (default) 110'b = 1.3 V 111'b = 1.4 V |
||||
| 0x1F | CH2 - CHB_2 DEM |
7 | Reserved | R | 0x02 | Set bit to 0 | |
| 6:5 | Reserved | Set bits to 0 | |||||
| 4:3 | Reserved | R/W | Set bits to 0 | ||||
| 2:0 | DEM Control | Yes | OUTB_2 DEM Control 000'b = 0 dB 001'b = –1.5 dB 010'b = –3.5 dB (default) 011'b = –5 dB 100'b = –6 dB 101'b = –8 dB 110'b = –9 dB 111'b = –12 dB |
||||
| 0x20 | CH2 - CHB_2 SD_TH |
7 | Reserved | R/W | 0x00 | Yes | Set bit to 0 |
| 6:4 | Reserved | Set bits to 0 | |||||
| 3:2 | Signal Detect Status Assert Threshold | Yes | Status Assert threshold 00'b = 180 mVp-p (default) 01'b = 160 mVp-p 10'b = 210 mVp-p 11'b = 190 mVp-p Note: Override SD_TH pin and enable register control through Reg 0x08[6] |
||||
| 1:0 | Signal Detect Status Deassert Threshold |
Yes | Status Deassert threshold 00'b = 110 mVp-p (default) 01'b = 100 mVp-p 10'b = 150 mVp-p 11'b = 130 mVp-p Note: Override SD_TH pin and enable register control through Reg 0x08[6] |
||||
| 0x21-0x22 | Reserved | 7:0 | Reserved | R/W | 0x00 | Set bits to 0 | |
| 0x23 | Reserved | 7:6 | Reserved | R/W | 0x00 | Set bits to 0 | |
| 5:4 | Reserved | Yes | Set bits to 0 | ||||
| 3:2 | Reserved | Yes | Set bits to 0 | ||||
| 1:0 | Reserved | Set bits to 0 | |||||
| 0x24 | CH3 - CHB_3 EQ |
7:0 | EQ Control | R/W | 0x2F | Yes | INB_3 EQ Control - total of 256 levels. See . |
| 0x25 | CH3 - CHB_3 VOD |
7 | Short Circuit Protection | R/W | 0xAD | Yes | 1 = Enable the short circuit protection 0 = Disable the short circuit protection |
| 6:3 | Reserved | Yes | Set bits to 0101'b | ||||
| 2:0 | VOD Control | Yes | OUTB_3 VOD Control: 000'b = 0.7 V 001'b = 0.8 V 010'b = 0.9 V 011'b = 1.0 V 100'b = 1.1 V 101'b = 1.2 V (default) 110'b = 1.3 V 111'b = 1.4 V |
||||
| 0x26 | CH3 - CHB_3 DEM |
7 | Reserved | R | 0x02 | Set bit to 0 | |
| 6:5 | Reserved | Set bits to 0 | |||||
| 4:3 | Reserved | R/W | Set bits to 0 | ||||
| 2:0 | DEM Control | Yes | OUTB_3 DEM Control 000'b = 0 dB 001'b = –1.5 dB 010'b = –3.5 dB (default) 011'b = –5 dB 100'b = –6 dB 101'b = –8 dB 110'b = –9 dB 111'b = –12 dB |
||||
| 0x27 | CH3 - CHB_3 SD_TH |
7 | Reserved | R/W | 0x00 | Yes | Set bit to 0 |
| 6:4 | Reserved | Set bits to 0 | |||||
| 3:2 | Signal Detect Status Assert Threshold | Yes | Status Assert threshold 00'b = 180 mVp-p (default) 01'b = 160 mVp-p 10'b = 210 mVp-p 11'b = 190 mVp-p Note: Override SD_TH pin and enable register control through Reg 0x08[6] |
||||
| 1:0 | Signal Detect Status Deassert Threshold |
Yes | Status Deassert threshold 00'b = 110 mVp-p (default) 01'b = 100 mVp-p 10'b = 150 mVp-p 11'b = 130 mVp-p Note: Override SD_TH pin and enable register control through Reg 0x08[6] |
||||
| 0x28 | Signal Detect Status Control | 7 | Reserved | R/W | 0x0C | Set bit to 0 | |
| 6 | Override Fast Signal Detect | Yes | Set bit to 0 | ||||
| 5:4 | High SD_TH Status | Yes | Enable Higher Range of Signal Detect Status Thresholds [5]: CH0 - CH3 [4]: CH4 - CH7 |
||||
| 3:2 | Fast Signal Detect Status | Yes | Enable Fast Signal Detect Status [3]: CH0 - CH3 [2]: CH4 - CH7 Note: In Fast Signal Detect, assert/deassert response occurs after approximately 3-4 ns |
||||
| 1:0 | Reduced SD Status Gain | Yes | Enable Reduced Signal Detect Status Gain [1]: CH0 - CH3 [0]: CH4 - CH7 |
||||
| 0x29-0x2A | Reserved | 7:0 | Reserved | R/W | 0x00 | Set bits to 0 | |
| 0x2B | Reserved | 7:6 | Reserved | R/W | 0x00 | Set bits to 0 | |
| 5:4 | Reserved | Yes | Set bits to 0 | ||||
| 3:2 | Reserved | Yes | Set bits to 0 | ||||
| 1:0 | Reserved | Set bits to 0 | |||||
| 0x2C | CH4 - CHA_0 EQ |
7:0 | EQ Control | R/W | 0x2F | Yes | INA_0 EQ Control - total of 256 levels. See . |
| 0x2D | CH4 - CHA_0 VOD |
7 | Short Circuit Protection | R/W | 0xAD | Yes | 1 = Enable the short circuit protection 0 = Disable the short circuit protection |
| 6:3 | Reserved | Yes | Set bits to 0101'b | ||||
| 2:0 | VOD Control | Yes | OUTA_0 VOD Control: 000'b = 0.7 V 001'b = 0.8 V 010'b = 0.9 V 011'b = 1.0 V 100'b = 1.1 V 101'b = 1.2 V (default) 110'b = 1.3 V 111'b = 1.4 V |
||||
| 0x2E | CH4 - CHA_0 DEM |
7 | Reserved | R | 0x02 | Set bit to 0 | |
| 6:5 | Reserved | Set bits to 0 | |||||
| 4:3 | Reserved | R/W | Set bits to 0 | ||||
| 2:0 | DEM Control | Yes | OUTA_0 DEM Control 000'b = 0 dB 001'b = –1.5 dB 010'b = –3.5 dB (default) 011'b = –5 dB 100'b = –6 dB 101'b = –8 dB 110'b = –9 dB 111'b = –12 dB |
||||
| 0x2F | CH4 - CHA_0 SD_TH |
7 | Reserved | R/W | 0x00 | Yes | Set bit to 0 |
| 6:4 | Reserved | Set bits to 0 | |||||
| 3:2 | Signal Detect Status Assert Threshold | Yes | Status Assert threshold 00'b = 180 mVp-p (default) 01'b = 160 mVp-p 10'b = 210 mVp-p 11'b = 190 mVp-p Note: Override SD_TH pin and enable register control through Reg 0x08[6] |
||||
| 1:0 | Signal Detect Status Deassert Threshold |
Yes | Status Deassert threshold 00'b = 110 mVp-p (default) 01'b = 100 mVp-p 10'b = 150 mVp-p 11'b = 130 mVp-p Note: Override SD_TH pin and enable register control through Reg 0x08[6] |
||||
| 0x30-0x31 | Reserved | 7:0 | Reserved | R/W | 0x00 | Set bits to 0 | |
| 0x32 | Reserved | 7:6 | Reserved | R/W | 0x00 | Set bits to 0 | |
| 5:4 | Reserved | Yes | Set bits to 0 | ||||
| 3:2 | Reserved | Yes | Set bits to 0 | ||||
| 1:0 | Reserved | Set bits to 0 | |||||
| 0x33 | CH5 - CHA_1 EQ |
7:0 | EQ Control | R/W | 0x2F | Yes | INA_1 EQ Control - total of 256 levels. See . |
| 0x34 | CH5 - CHA_1 VOD |
7 | Short Circuit Protection | R/W | 0xAD | Yes | 1 = Enable the short circuit protection 0 = Disable the short circuit protection |
| 6:3 | Reserved | Yes | Set bits to 0101'b | ||||
| 2:0 | VOD Control | Yes | OUTA_1 VOD Control: 000'b = 0.7 V 001'b = 0.8 V 010'b = 0.9 V 011'b = 1.0 V 100'b = 1.1 V 101'b = 1.2 V (default) 110'b = 1.3 V 111'b = 1.4 V |
||||
| 0x35 | CH5 - CHA_1 DEM |
7 | Reserved | R | 0x02 | Set bit to 0 | |
| 6:5 | Reserved | Set bits to 0 | |||||
| 4:3 | Reserved | R/W | Set bits to 0 | ||||
| 2:0 | DEM Control | Yes | OUTA_1 DEM Control 000'b = 0 dB 001'b = –1.5 dB 010'b = –3.5 dB (default) 011'b = –5 dB 100'b = –6 dB 101'b = –8 dB 110'b = –9 dB 111'b = –12 dB |
||||
| 0x36 | CH5 - CHA_1 SD_TH |
7 | Reserved | R/W | 0x00 | Yes | Set bit to 0 |
| 6:4 | Reserved | Set bits to 0 | |||||
| 3:2 | Signal Detect Status Assert Threshold | Yes | Status Assert threshold 00'b = 180 mVp-p (default) 01'b = 160 mVp-p 10'b = 210 mVp-p 11'b = 190 mVp-p Note: Override SD_TH pin and enable register control through Reg 0x08[6] |
||||
| 1:0 | Signal Detect Status Deassert Threshold |
Yes | Status Deassert threshold 00'b = 110 mVp-p (default) 01'b = 100 mVp-p 10'b = 150 mVp-p 11'b = 130 mVp-p Note: Override SD_TH pin and enable register control through Reg 0x08[6] |
||||
| 0x37-0x38 | Reserved | 7:0 | Reserved | R/W | 0x00 | Set bits to 0 | |
| 0x39 | Reserved | 7:6 | Reserved | R/W | 0x00 | Set bits to 0 | |
| 5:4 | Reserved | Yes | Set bits to 0 | ||||
| 3:2 | Reserved | Yes | Set bits to 0 | ||||
| 1:0 | Reserved | Set bits to 0 | |||||
| 0x3A | CH6 - CHA_2 EQ |
7:0 | EQ Control | R/W | 0x2F | Yes | INA_2 EQ Control - total of 256 levels. See . |
| 0x3B | CH6 - CHA_2 VOD |
7 | Short Circuit Protection | R/W | 0xAD | Yes | 1 = Enable the short circuit protection 0 = Disable the short circuit protection |
| 6:3 | Reserved | Yes | Set bits to 0101'b | ||||
| 2:0 | VOD Control | Yes | OUTA_2 VOD Control: VOD / VID Ratio 000'b = 0.7 V 001'b = 0.8 V 010'b = 0.9 V 011'b = 1.0 V 100'b = 1.1 V 101'b = 1.2 V (default) 110'b = 1.3 V 111'b = 1.4 V |
||||
| 0x3C | CH6 - CHA_2 DEM |
7 | Reserved | R | 0x02 | Set bit to 0 | |
| 6:5 | Reserved | Set bits to 0 | |||||
| 4:3 | Reserved | R/W | Set bits to 0 | ||||
| 2:0 | DEM Control | Yes | OUTA_2 DEM Control 000'b = 0 dB 001'b = –1.5 dB 010'b = –3.5 dB (default) 011'b = –5 dB 100'b = –6 dB 101'b = –8 dB 110'b = –9 dB 111'b = –12 dB |
||||
| 0x3D | CH6 - CHA_2 SD_TH |
7 | Reserved | R/W | 0x00 | Yes | Set bit to 0 |
| 6:4 | Reserved | Set bits to 0 | |||||
| 3:2 | Signal Detect Status Assert Threshold | Yes | Status Assert threshold 00'b = 180 mVp-p (default) 01'b = 160 mVp-p 10'b = 210 mVp-p 11'b = 190 mVp-p Note: Override SD_TH pin and enable register control through Reg 0x08[6] |
||||
| 1:0 | Signal Detect Status Deassert Threshold |
Yes | Status Deassert threshold 00'b = 110 mVp-p (default) 01'b = 100 mVp-p 10'b = 150 mVp-p 11'b = 130 mVp-p Note: Override SD_TH pin and enable register control through Reg 0x08[6] |
||||
| 0x3E-0x3F | Reserved | 7:0 | Reserved | R/W | 0x00 | Set bits to 0 | |
| 0x40 | Reserved | 7:6 | Reserved | R/W | 0x00 | Set bits to 0 | |
| 5:4 | Reserved | Yes | Set bits to 0 | ||||
| 3:2 | Reserved | Yes | Set bits to 0 | ||||
| 1:0 | Reserved | Set bits to 0 | |||||
| 0x41 | CH7 - CHA_3 EQ |
7:0 | EQ Control | R/W | 0x2F | Yes | INA_3 EQ Control - total of 256 levels. See . |
| 0x42 | CH7 - CHA_3 VOD |
7 | Short Circuit Protection | R/W | 0xAD | Yes | 1 = Enable the short circuit protection 0 = Disable the short circuit protection |
| 6:3 | Reserved | Yes | Set bits to 0101'b | ||||
| 2:0 | VOD Control | Yes | OUTA_3 VOD Control: 000'b = 0.7 V 001'b = 0.8 V 010'b = 0.9 V 011'b = 1.0 V 100'b = 1.1 V 101'b = 1.2 V (default) 110'b = 1.3 V 111'b = 1.4 V |
||||
| 0x43 | CH7 - CHA_3 DEM |
7 | Reserved | R | 0x02 | Set bit to 0 | |
| 6:5 | Reserved | Set bits to 0 | |||||
| 4:3 | Reserved | R/W | Set bits to 0 | ||||
| 2:0 | DEM Control | Yes | OUTA_3 DEM Control 000'b = 0 dB 001'b = –1.5 dB 010'b = –3.5 dB (default) 011'b = –5 dB 100'b = –6 dB 101'b = –8 dB 110'b = –9 dB 111'b = –12 dB |
||||
| 0x44 | CH7 - CHA_3 SD_TH |
7 | Reserved | R/W | 0x00 | Yes | Set bit to 0 |
| 6:4 | Reserved | Set bits to 0 | |||||
| 3:2 | Signal Detect Status Assert Threshold | Yes | Status Assert threshold 00'b = 180 mVp-p (default) 01'b = 160 mVp-p 10'b = 210 mVp-p 11'b = 190 mVp-p Note: Override SD_TH pin and enable register control through Reg 0x08[6] |
||||
| 1:0 | Signal Detect Status Deassert Threshold |
Yes | Status Deassert threshold 00'b = 110 mVp-p (default) 01'b = 100 mVp-p 10'b = 150 mVp-p 11'b = 130 mVp-p Note: Override SD_TH pin and enable register control through Reg 0x08[6] |
||||
| 0x45 | Reserved | 7:0 | Reserved | R/W | 0x00 | Set bits to 0 | |
| 0x46 | Reserved | 7:0 | Reserved | R/W | 0x38 | Set bits to 0x38 | |
| 0x47 | Reserved | 7:4 | Reserved | R/W | 0x00 | Set bits to 0 | |
| 3:0 | Reserved | Yes | Set bits to 0 | ||||
| 0x48 | Reserved | 7:6 | Reserved | R/W | 0x05 | Yes | Set bits to 0 |
| 5:0 | Reserved | R/W | Set bits to 00 0101'b | ||||
| 0x49-0x4B | Reserved | 7:0 | Reserved | R/W | 0x00 | Set bits to 0 | |
| 0x4C | Reserved | 7:3 | Reserved | R/W | 0x00 | Yes | Set bits to 0 |
| 2:1 | Reserved | R/W | Set bits to 0 | ||||
| 0 | Reserved | R/W | Yes | Set bits to 0 | |||
| 0x4D-0x50 | Reserved | 7:0 | Reserved | R/W | 0x00 | Set bits to 0 | |
| 0x51 | Device ID | 7:5 | VERSION | R | 0x45 | 010'b | |
| 4:0 | ID | 0 0101'b | |||||
| 0x52-0x55 | Reserved | 7:0 | Reserved | R/W | 0x00 | Set bits to 0 | |
| 0x56 | Reserved | 7:0 | Reserved | R/W | 0x10 | Set bits to 0x10 | |
| 0x57 | Reserved | 7:0 | Reserved | R/W | 0x64 | Set bits to 0x64 | |
| 0x58 | Reserved | 7:0 | Reserved | R/W | 0x21 | Set bits to 0x21 | |
| 0x59 | Reserved | 7:1 | Reserved | R/W | 0x00 | Set bits to 0 | |
| 0 | Reserved | Yes | Set bit to 0 | ||||
| 0x5A | Reserved | 7:0 | Reserved | R/W | 0x54 | Yes | Set bits to 0x54 |
| 0x5B | Reserved | 7:0 | Reserved | R/W | 0x54 | Yes | Set bits to 0x54 |
| 0x5C-0x61 | Reserved | 7:0 | Reserved | R/W | 0x00 | Set bits to 0 |
Table 7. EEPROM Register Map - Single Device With Default Value
| EEPROM ADDRESS BYTE | BIT 7 | BIT 6 | BIT 5 | BIT 4 | BIT 3 | BIT 2 | BIT 1 | BIT 0 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Description | 0x00 | CRC_EN | Address Map Present | EEPROM > 256 Bytes | Reserved | DEVICE COUNT[3] | DEVICE COUNT[2] | DEVICE COUNT[1] | DEVICE COUNT[0] | |
| Default Value | 0x00 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Description | 0x01 | Reserved | Reserved | Reserved | Reserved | Reserved | Reserved | Reserved | Reserved | |
| Default Value | 0x00 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Description | 0x02 | Max EEPROM Burst size[7] | Max EEPROM Burst size[6] | Max EEPROM Burst size[5] | Max EEPROM Burst size[4] | Max EEPROM Burst size[3] | Max EEPROM Burst size[2] | Max EEPROM Burst size[1] | Max EEPROM Burst size[0] | |
| Default Value | 0x00 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Description | 0x03 | PWDN_CH7 | PWDN_CH6 | PWDN_CH5 | PWDN_CH4 | PWDN_CH3 | PWDN_CH2 | PWDN_CH1 | PWDN_CH0 | |
| SMBus Register | 0x01[7] | 0x01[6] | 0x01[5] | 0x01[4] | 0x01[3] | 0x01[2] | 0x01[1] | 0x01[0] | ||
| Default Value | 0x00 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Description | 0x04 | Reserved | Reserved | Reserved | Reserved | Ovrd_RESET | Reserved | Reserved | Reserved | |
| SMBus Register | 0x02[5] | 0x02[4] | 0x02[3] | 0x02[2] | 0x02[0] | 0x04[7] | 0x04[6] | 0x04[5] | ||
| Default Value | 0x00 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Description | 0x05 | Reserved | Reserved | Reserved | Reserved | Reserved | Reserved | Ovrd_SD_TH | Reserved | |
| SMBus Register | 0x04[4] | 0x04[3] | 0x04[2] | 0x04[1] | 0x04[0] | 0x06[4] | 0x08[6] | 0x08[5] | ||
| Default Value | 0x04 | 0 | 0 | 0 | 0 | 0 | 1 | 0 | 0 | |
| Description | 0x06 | Reserved | Reserved | Reserved | Ovrd_DEM | Reserved | Reserved | Reserved | Reserved | |
| SMBus Register | 0x08[4] | 0x08[3] | 0x08[2] | 0x08[1] | 0x08[0] | 0x0B[6] | 0x0B[5] | 0x0B[4] | ||
| Default Value | 0x07 | 0 | 0 | 0 | 0 | 0 | 1 | 1 | 1 | |
| Description | 0x07 | Reserved | Reserved | Reserved | Reserved | Reserved | Reserved | Reserved | Reserved | |
| SMBus Register | 0x0B[3] | 0x0B[2] | 0x0B[1] | 0x0B[0] | 0x0E[5] | 0x0E[4] | 0x0E[3] | 0x0E[2] | ||
| Default Value | 0x00 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Description | 0x08 | CH0_EQ_7 | CH0_EQ_6 | CH0_EQ_5 | CH0_EQ_4 | CH0_EQ_3 | CH0_EQ_2 | CH0_EQ_1 | CH0_EQ_0 | |
| SMBus Register | 0x0F[7] | 0x0F[6] | 0x0F[5] | 0x0F[4] | 0x0F[3] | 0x0F[2] | 0x0F[1] | 0x0F[0] | ||
| Default Value | 0x2F | 0 | 0 | 1 | 0 | 1 | 1 | 1 | 1 | |
| Description | 0x09 | CH0_SCP | Reserved | Reserved | Reserved | Reserved | CH0_VOD_2 | CH0_VOD_1 | CH0_VOD_0 | |
| SMBus Register | 0x10[7] | 0x10[6] | 0x10[5] | 0x10[4] | 0x10[3] | 0x10[2] | 0x10[1] | 0x10[0] | ||
| Default Value | 0xAD | 1 | 0 | 1 | 0 | 1 | 1 | 0 | 1 | |
| Description | 0x0A | CH0_DEM_2 | CH0_DEM_1 | CH0_DEM_0 | Reserved | CH0_THa_1 | CH0_THa_0 | CH0_THd_1 | CH0_THd_0 | |
| SMBus Register | 0x11[2] | 0x11[1] | 0x11[0] | 0x12[7] | 0x12[3] | 0x12[2] | 0x12[1] | 0x12[0] | ||
| Default Value | 0x40 | 0 | 1 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Description | 0x0B | Reserved | Reserved | Reserved | Reserved | CH1_EQ_7 | CH1_EQ_6 | CH1_EQ_5 | CH1_EQ_4 | |
| SMBus Register | 0x15[5] | 0x15[4] | 0x15[3] | 0x15[2] | 0x16[7] | 0x16[6] | 0x16[5] | 0x16[4] | ||
| Default Value | 0x02 | 0 | 0 | 0 | 0 | 0 | 0 | 1 | 0 | |
| Description | 0x0C | CH1_EQ_3 | CH1_EQ_2 | CH1_EQ_1 | CH1_EQ_0 | CH1_SCP | Reserved | Reserved | Reserved | |
| SMBus Register | 0x16[3] | 0x16[2] | 0x16[1] | 0x16[0] | 0x17[7] | 0x17[6] | 0x17[5] | 0x17[4] | ||
| Default Value | 0xFA | 1 | 1 | 1 | 1 | 1 | 0 | 1 | 0 | |
| Description | 0x0D | Reserved | CH1_VOD_2 | CH1_VOD_1 | CH1_VOD_0 | CH1_DEM_2 | CH1_DEM_1 | CH1_DEM_0 | Reserved | |
| SMBus Register | 0x17[3] | 0x17[2] | 0x17[1] | 0x17[0] | 0x18[2] | 0x18[1] | 0x18[0] | 0x19[7] | ||
| Default Value | 0xD4 | 1 | 1 | 0 | 1 | 0 | 1 | 0 | 0 | |
| Description | 0x0E | CH1_THa_1 | CH1_THa_0 | CH1_THd_1 | CH1_THd_0 | Reserved | Reserved | Reserved | Reserved | |
| SMBus Register | 0x19[3] | 0x19[2] | 0x19[1] | 0x19[0] | 0x1C[5] | 0x1C[4] | 0x1C[3] | 0x1C[2] | ||
| Default Value | 0x00 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Description | 0x0F | CH2_EQ_7 | CH2_EQ_6 | CH2_EQ_5 | CH2_EQ_4 | CH2_EQ_3 | CH2_EQ_2 | CH2_EQ_1 | CH2_EQ_0 | |
| SMBus Register | 0x1D[7] | 0x1D[6] | 0x1D[5] | 0x1D[4] | 0x1D[3] | 0x1D[2] | 0x1D[1] | 0x1D[0] | ||
| Default Value | 0x2F | 0 | 0 | 1 | 0 | 1 | 1 | 1 | 1 | |
| Description | 0x10 | CH2_SCP | Reserved | Reserved | Reserved | Reserved | CH2_VOD_2 | CH2_VOD_1 | CH2_VOD_0 | |
| SMBus Register | 0x1E[7] | 0x1E[6] | 0x1E[5] | 0x1E[4] | 0x1E[3] | 0x1E[2] | 0x1E[1] | 0x1E[0] | ||
| Default Value | 0xAD | 1 | 0 | 1 | 0 | 1 | 1 | 0 | 1 | |
| Description | 0x11 | CH2_DEM_2 | CH2_DEM_1 | CH2_DEM_0 | Reserved | CH2_THa_1 | CH2_THa_0 | CH2_THd_1 | CH2_THd_0 | |
| SMBus Register | 0x1F[2] | 0x1F[1] | 0x1F[0] | 0x20[7] | 0x20[3] | 0x20[2] | 0x20[1] | 0x20[0] | ||
| Default Value | 0x40 | 0 | 1 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Description | 0x12 | Reserved | Reserved | Reserved | Reserved | CH3_EQ_7 | CH3_EQ_6 | CH3_EQ_5 | CH3_EQ_4 | |
| SMBus Register | 0x23[5] | 0x23[4] | 0x23[3] | 0x23[2] | 0x24[7] | 0x24[6] | 0x24[5] | 0x24[4] | ||
| Default Value | 0x02 | 0 | 0 | 0 | 0 | 0 | 0 | 1 | 0 | |
| Description | 0x13 | CH3_EQ_3 | CH3_EQ_2 | CH3_EQ_1 | CH3_EQ_0 | CH3_SCP | Reserved | Reserved | Reserved | |
| SMBus Register | 0x24[3] | 0x24[2] | 0x24[1] | 0x24[0] | 0x25[7] | 0x25[6] | 0x25[5] | 0x25[4] | ||
| Default Value | 0xFA | 1 | 1 | 1 | 1 | 1 | 0 | 1 | 0 | |
| Description | 0x14 | Reserved | CH3_VOD_2 | CH3_VOD_1 | CH3_VOD_0 | CH3_DEM_2 | CH3_DEM_1 | CH3_DEM_0 | Reserved | |
| SMBus Register | 0x25[3] | 0x25[2] | 0x25[1] | 0x25[0] | 0x26[2] | 0x26[1] | 0x26[0] | 0x27[7] | ||
| Default Value | 0xD4 | 1 | 1 | 0 | 1 | 0 | 1 | 0 | 0 | |
| Description | 0x15 | CH3_THa_1 | CH3_THa_0 | CH3_THd_1 | CH3_THd_0 | ovrd_fast_SD | hi_idle_SD CH0-3 | hi_idle_SD CH4-7 | fast_SD CH0-3 | |
| SMBus Register | 0x27[3] | 0x27[2] | 0x27[1] | 0x27[0] | 0x28[6] | 0x28[5] | 0x28[4] | 0x28[3] | ||
| Default Value | 0x01 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 1 | |
| Description | 0x16 | fast_SD CH4-7 | lo_gain_SD CH0-3 | lo_gain_SD CH4-7 | Reserved | Reserved | Reserved | Reserved | CH4_EQ_7 | |
| SMBus Register | 0x28[2] | 0x28[1] | 0x28[0] | 0x2B[5] | 0x2B[4] | 0x2B[3] | 0x2B[2] | 0x2C[7] | ||
| Default Value | 0x80 | 1 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Description | 0x17 | CH4_EQ_6 | CH4_EQ_5 | CH4_EQ_4 | CH4_EQ_3 | CH4_EQ_2 | CH4_EQ_1 | CH4_EQ_0 | CH4_SCP | |
| SMBus Register | 0x2C[6] | 0x2C[5] | 0x2C[4] | 0x2C[3] | 0x2C[2] | 0x2C[1] | 0x2C[0] | 0x2D[7] | ||
| Default Value | 0x5F | 0 | 1 | 0 | 1 | 1 | 1 | 1 | 1 | |
| Description | 0x18 | Reserved | Reserved | Reserved | Reserved | CH4_VOD_2 | CH4_VOD_1 | CH4_VOD_0 | CH4_DEM_2 | |
| SMBus Register | 0x2D[6] | 0x2D[5] | 0x2D[4] | 0x2D[3] | 0x2D[2] | 0x2D[1] | 0x2D[0] | 0x2E[2] | ||
| Default Value | 0x5A | 0 | 1 | 0 | 1 | 1 | 0 | 1 | 0 | |
| Description | 0x19 | CH4_DEM_1 | CH4_DEM_0 | Reserved | CH4_THa_1 | CH4_THa_0 | CH4_THd_1 | CH4_THd_0 | Reserved | |
| SMBus Register | 0x2E[1] | 0x2E[0] | 0x2F[7] | 0x2F[3] | 0x2F[2] | 0x2F[1] | 0x2F[0] | 0x32[5] | ||
| Default Value | 0x80 | 1 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Description | 0x1A | Reserved | Reserved | Reserved | CH5_EQ_7 | CH5_EQ_6 | CH5_EQ_5 | CH5_EQ_4 | CH5_EQ_3 | |
| SMBus Register | 0x32[4] | 0x32[3] | 0x32[2] | 0x33[7] | 0x33[6] | 0x33[5] | 0x33[4] | 0x33[3] | ||
| Default Value | 0x05 | 0 | 0 | 0 | 0 | 0 | 1 | 0 | 1 | |
| Description | 0x1B | CH5_EQ_2 | CH5_EQ_1 | CH5_EQ_0 | CH5_SCP | Reserved | Reserved | Reserved | Reserved | |
| SMBus Register | 0x33[2] | 0x33[1] | 0x33[0] | 0x34[7] | 0x34[6] | 0x34[5] | 0x34[4] | 0x34[3] | ||
| Default Value | 0xF5 | 1 | 1 | 1 | 1 | 0 | 1 | 0 | 1 | |
| Description | 0x1C | CH5_VOD_2 | CH5_VOD_1 | CH5_VOD_0 | CH5_DEM_2 | CH5_DEM_1 | CH5_DEM_0 | Reserved | CH5_THa_1 | |
| SMBus Register | 0x34[2] | 0x34[1] | 0x34[0] | 0x35[2] | 0x35[1] | 0x35[0] | 0x36[7] | 0x36[3] | ||
| Default Value | 0xA8 | 1 | 0 | 1 | 0 | 1 | 0 | 0 | 0 | |
| Description | 0x1D | CH5_THa_0 | CH5_THd_1 | CH5_THd_0 | Reserved | Reserved | Reserved | Reserved | CH6_EQ_7 | |
| SMBus Register | 0x36[2] | 0x36[1] | 0x36[0] | 0x39[5] | 0x39[4] | 0x39[3] | 0x39[2] | 0x3A[7] | ||
| Default Value | 0x00 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Description | 0x1E | CH6_EQ_6 | CH6_EQ_5 | CH6_EQ_4 | CH6_EQ_3 | CH6_EQ_2 | CH6_EQ_1 | CH6_EQ_0 | CH6_SCP | |
| SMBus Register | 0x3A[6] | 0x3A[5] | 0x3A[4] | 0x3A[3] | 0x3A[2] | 0x3A[1] | 0x3A[0] | 0x3B[7] | ||
| Default Value | 0x5F | 0 | 1 | 0 | 1 | 1 | 1 | 1 | 1 | |
| Description | 0x1F | Reserved | Reserved | Reserved | Reserved | CH6_VOD_2 | CH6_VOD_1 | CH6_VOD_0 | CH6_DEM_2 | |
| SMBus Register | 0x3B[6] | 0x3B[5] | 0x3B[4] | 0x3B[3] | 0x3B[2] | 0x3B[1] | 0x3B[0] | 0x3C[2] | ||
| Default Value | 0x5A | 0 | 1 | 0 | 1 | 1 | 0 | 1 | 0 | |
| Description | 0x20 | CH6_DEM_1 | CH6_DEM_0 | Reserved | CH6_THa_1 | CH6_THa_0 | CH6_THd_1 | CH6_THd_0 | Reserved | |
| SMBus Register | 0x3C[1] | 0x3C[0] | 0x3D[7] | 0x3D[3] | 0x3D[2] | 0x3D[1] | 0x3D[0] | 0x40[5] | ||
| Default Value | 0x80 | 1 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Description | 0x21 | Reserved | Reserved | Reserved | CH7_EQ_7 | CH7_EQ_6 | CH7_EQ_5 | CH7_EQ_4 | CH7_EQ_3 | |
| SMBus Register | 0x40[4] | 0x40[3] | 0x40[2] | 0x41[7] | 0x41[6] | 0x41[5] | 0x41[4] | 0x41[3] | ||
| Default Value | 0x05 | 0 | 0 | 0 | 0 | 0 | 1 | 0 | 1 | |
| Description | 0x22 | CH7_EQ_2 | CH7_EQ_1 | CH7_EQ_0 | CH7_SCP | Reserved | Reserved | Reserved | Reserved | |
| SMBus Register | 0x41[2] | 0x41[1] | 0x41[0] | 0x42[7] | 0x42[6] | 0x42[5] | 0x42[4] | 0x42[3] | ||
| Default Value | 0xF5 | 1 | 1 | 1 | 1 | 0 | 1 | 0 | 1 | |
| Description | 0x23 | CH7_VOD_2 | CH7_VOD_1 | CH7_VOD_0 | CH7_DEM_2 | CH7_DEM_1 | CH7_DEM_0 | Reserved | CH7_THa_1 | |
| SMBus Register | 0x42[2] | 0x42[1] | 0x42[0] | 0x43[2] | 0x43[1] | 0x43[0] | 0x44[7] | 0x44[3] | ||
| Default Value | 0xA8 | 1 | 0 | 1 | 0 | 1 | 0 | 0 | 0 | |
| Description | 0x24 | CH7_THa_0 | CH7_THd_1 | CH7_THd_0 | Reserved | Reserved | Reserved | Reserved | Reserved | |
| SMBus Register | 0x44[2] | 0x44[1] | 0x44[0] | 0x47[3] | 0x47[2] | 0x47[1] | 0x47[0] | 0x48[7] | ||
| Default Value | 0x00 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Description | 0x25 | Reserved | Reserved | Reserved | Reserved | Reserved | Reserved | Reserved | Reserved | |
| SMBus Register | 0x48[6] | 0x4C[7] | 0x4C[6] | 0x4C[5] | 0x4C[4] | 0x4C[3] | 0x4C[0] | 0x59[0] | ||
| Default Value | 0x00 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Description | 0x26 | Reserved | Reserved | Reserved | Reserved | Reserved | Reserved | Reserved | Reserved | |
| SMBus Register | 0x5A[7] | 0x5A[6] | 0x5A[5] | 0x5A[4] | 0x5A[3] | 0x5A[2] | 0x5A[1] | 0x5A[0] | ||
| Default Value | 0x54 | 0 | 1 | 0 | 1 | 0 | 1 | 0 | 0 | |
| Description | 0x27 | Reserved | Reserved | Reserved | Reserved | Reserved | Reserved | Reserved | Reserved | |
| SMBus Register | 0x5B[7] | 0x5B[6] | 0x5B[5] | 0x5B[4] | 0x5B[3] | 0x5B[2] | 0x5B[1] | 0x5B[0] | ||
| Default Value | 0x54 | 0 | 1 | 0 | 1 | 0 | 1 | 0 | 0 | |
Table 8. Example of EEPROM for 4 Devices Using 2 Address Maps(1)
| EEPROM ADDRESS | ADDRESS (HEX) | EEPROM DATA | COMMENTS |
|---|---|---|---|
| 0 | 00 | 0x43 | CRC_EN = 0, Address Map = 1, >256 bytes = 0, Device Count[3:0] = 3 |
| 1 | 01 | 0x00 | |
| 2 | 02 | 0x08 | EEPROM Burst Size |
| 3 | 03 | 0x00 | CRC not used |
| 4 | 04 | 0x0B | Device 0 Address Location |
| 5 | 05 | 0x00 | CRC not used |
| 6 | 06 | 0x0B | Device 1 Address Location |
| 7 | 07 | 0x00 | CRC not used |
| 8 | 08 | 0x30 | Device 2 Address Location |
| 9 | 09 | 0x00 | CRC not used |
| 10 | 0A | 0x30 | Device 3 Address Location |
| 11 | 0B | 0x00 | Begin Device 0, 1 - Address Offset 3 |
| 12 | 0C | 0x00 | |
| 13 | 0D | 0x04 | |
| 14 | 0E | 0x07 | |
| 15 | 0F | 0x00 | |
| 16 | 10 | 0x00 | EQ CHB0 = 00 |
| 17 | 11 | 0xAB | VOD CHB0 = 1.0 V |
| 18 | 12 | 0x00 | DEM CHB0 = 0 (0 dB) |
| 19 | 13 | 0x00 | EQ CHB1 = 00 |
| 20 | 14 | 0x0A | VOD CHB1 = 1.0 V |
| 21 | 15 | 0xB0 | DEM CHB1 = 0 (0 dB) |
| 22 | 16 | 0x00 | |
| 23 | 17 | 0x00 | EQ CHB2 = 00 |
| 24 | 18 | 0xAB | VOD CHB2 = 1.0 V |
| 25 | 19 | 0x00 | DEM CHB2 = 0 (0 dB) |
| 26 | 1A | 0x00 | EQ CHB3 = 00 |
| 27 | 1B | 0x0A | VOD CHB3 = 1.0 V |
| 28 | 1C | 0xB0 | DEM CHB3 = 0 (0 dB) |
| 29 | 1D | 0x01 | |
| 30 | 1E | 0x80 | |
| 31 | 1F | 0x01 | EQ CHA0 = 00 |
| 32 | 20 | 0x56 | VOD CHA0 = 1.0 V |
| 33 | 21 | 0x00 | DEM CHA0 = 0 (0 dB) |
| 34 | 22 | 0x00 | EQ CHA1 = 00 |
| 35 | 23 | 0x15 | VOD CHA1 = 1.0 V |
| 36 | 24 | 0x60 | DEM CHA1 = 0 (0 dB) |
| 37 | 25 | 0x00 | |
| 38 | 26 | 0x01 | EQ CHA2 = 00 |
| 39 | 27 | 0x56 | VOD CHA2 = 1.0 V |
| 40 | 28 | 0x00 | DEM CHA2 = 0 (0 dB) |
| 41 | 29 | 0x00 | EQ CHA3 = 00 |
| 42 | 2A | 0x15 | VOD CHA3 = 1.0 V |
| 43 | 2B | 0x60 | DEM CHA3 = 0 (0 dB) |
| 44 | 2C | 0x00 | |
| 45 | 2D | 0x00 | |
| 46 | 2E | 0x54 | |
| 47 | 2F | 0x54 | End Device 0, 1 - Address Offset 39 |
| 48 | 30 | 0x00 | Begin Device 2, 3 - Address Offset 3 |
| 49 | 31 | 0x00 | |
| 50 | 32 | 0x04 | |
| 51 | 33 | 0x07 | |
| 52 | 34 | 0x00 | |
| 53 | 35 | 0x00 | EQ CHB0 = 00 |
| 54 | 36 | 0xAB | VOD CHB0 = 1.0 V |
| 55 | 37 | 0x00 | DEM CHB0 = 0 (0 dB) |
| 56 | 38 | 0x00 | EQ CHB1 = 00 |
| 57 | 39 | 0x0A | VOD CHB1 = 1.0 V |
| 58 | 3A | 0xB0 | DEM CHB1 = 0 (0 dB) |
| 59 | 3B | 0x00 | |
| 60 | 3C | 0x00 | EQ CHB2 = 00 |
| 61 | 3D | 0xAB | VOD CHB2 = 1.0 V |
| 62 | 3E | 0x00 | DEM CHB2 = 0 (0 dB) |
| 63 | 3F | 0x00 | EQ CHB3 = 00 |
| 64 | 40 | 0x0A | VOD CHB3 = 1.0 V |
| 65 | 41 | 0xB0 | DEM CHB3 = 0 (0 dB) |
| 66 | 42 | 0x01 | |
| 67 | 43 | 0x80 | |
| 68 | 44 | 0x01 | EQ CHA0 = 00 |
| 69 | 45 | 0x56 | VOD CHA0 = 1.0 V |
| 70 | 46 | 0x00 | DEM CHA0 = 0 (0 dB) |
| 71 | 47 | 0x00 | EQ CHA1 = 00 |
| 72 | 48 | 0x15 | VOD CHA1 = 1.0 V |
| 73 | 49 | 0x60 | DEM CHA1 = 0 (0 dB) |
| 74 | 4A | 0x00 | |
| 75 | 4B | 0x01 | EQ CHA2 = 00 |
| 76 | 4C | 0x56 | VOD CHA2 = 1.0 V |
| 77 | 4D | 0x00 | DEM CHA2 = 0 (0 dB) |
| 78 | 4E | 0x00 | EQ CHA3 = 00 |
| 79 | 4F | 0x15 | VOD CHA3 = 1.0 V |
| 80 | 50 | 0x60 | DEM CHA3 = 0 (0 dB) |
| 81 | 51 | 0x00 | |
| 82 | 52 | 0x00 | |
| 83 | 53 | 0x54 | |
| 84 | 54 | 0x54 | End Device 2, 3 - Address Offset 39 |
(1) Note: CRC_EN = 0, Address Map = 1, >256 byte = 0, Device Count[3:0] = 3. This example has all 8–channels set to EQ = 00 (min boost), VOD = 1.0 V, DEM = 0 (0 dB) and multiple device can point to the same address map.
