1 Features

• Two Channel Repeaters for up to 10.3 Gbps
  • DS100BR210 : 2x Unidirectional Channels
  • DS100BR111 : 1x Bidirectional Lane
• 10G-KR Bi-directional Interface Compatibility
  • Allows for Back-channel Communication and Training
• Low 65 mW/channel (Typical) Power Consumption, with Option to Power Down Unused Channels
• Advanced Signal Conditioning Features
  • Receive Equalization up to +36 dB
  • Transmit De-emphasis up to -12 dB
  • Transmit VOD Control: 700 to 1300 mVp-p
  • Low Residual DJ at 10.3 Gbps
• Programmable Via Pin Selection, EEPROM, or SMBus Interface
• Single Supply Voltage: 2.5 V or 3.3 V
• Flow-thru Pinout in 4 mm × 4 mm 24-pin Leadless WQFN Package
• 5 kV HBM ESD Rating
• -40 to 85°C Operating Temperature Range

2 Applications

• High-speed Active Copper Cable Modules and FR-4 Backplane in Communication Systems
• 10GE, 10G-KR, FC, SAS, SATA 3/6 Gbps (with OOB Detection), InfiniBand, CPRI, RXAUI and many others

3 Description

The DS100BR210 is an extremely low power, high performance repeater designed to support serial links with data rates up to 10.3 Gbps. The DS100BR210 pinout is configured as two unidirectional channels. The DS100BR210 inputs feature a powerful 4-stage continuous time linear equalizer (CTLE) to provide a boost of up to +36 dB at 5 GHz and open an input eye that is completely closed due to inter-symbol interference (ISI) induced by the interconnect mediums such as board traces or twin-axial copper cables. The transmitter features a programmable output de-emphasis driver with up to -12 dB and can drive output voltage levels from 700 mVp-p to 1300 mVp-p.

When configured as a 10G-KR repeater, the DS100BR210 allows the KR host and the end point to optimize the full link by adjusting transmit and receive equalizer coefficients using back-channel communication techniques specified by the 802.3ap Ethernet standard.

The programmable settings can be applied via pin control, SMBus protocol, or an external EEPROM. In the EEPROM mode, the configuration information is automatically loaded on power up, thereby eliminating the need for an external microprocessor or software driver.

1. For all available packages, see the orderable addendum at the end of the datasheet.

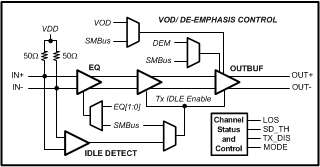

4 Simplified Schematic

Typical Application
